Appleseed is a rendering engine with three workloads taking almost 100% of the CPU

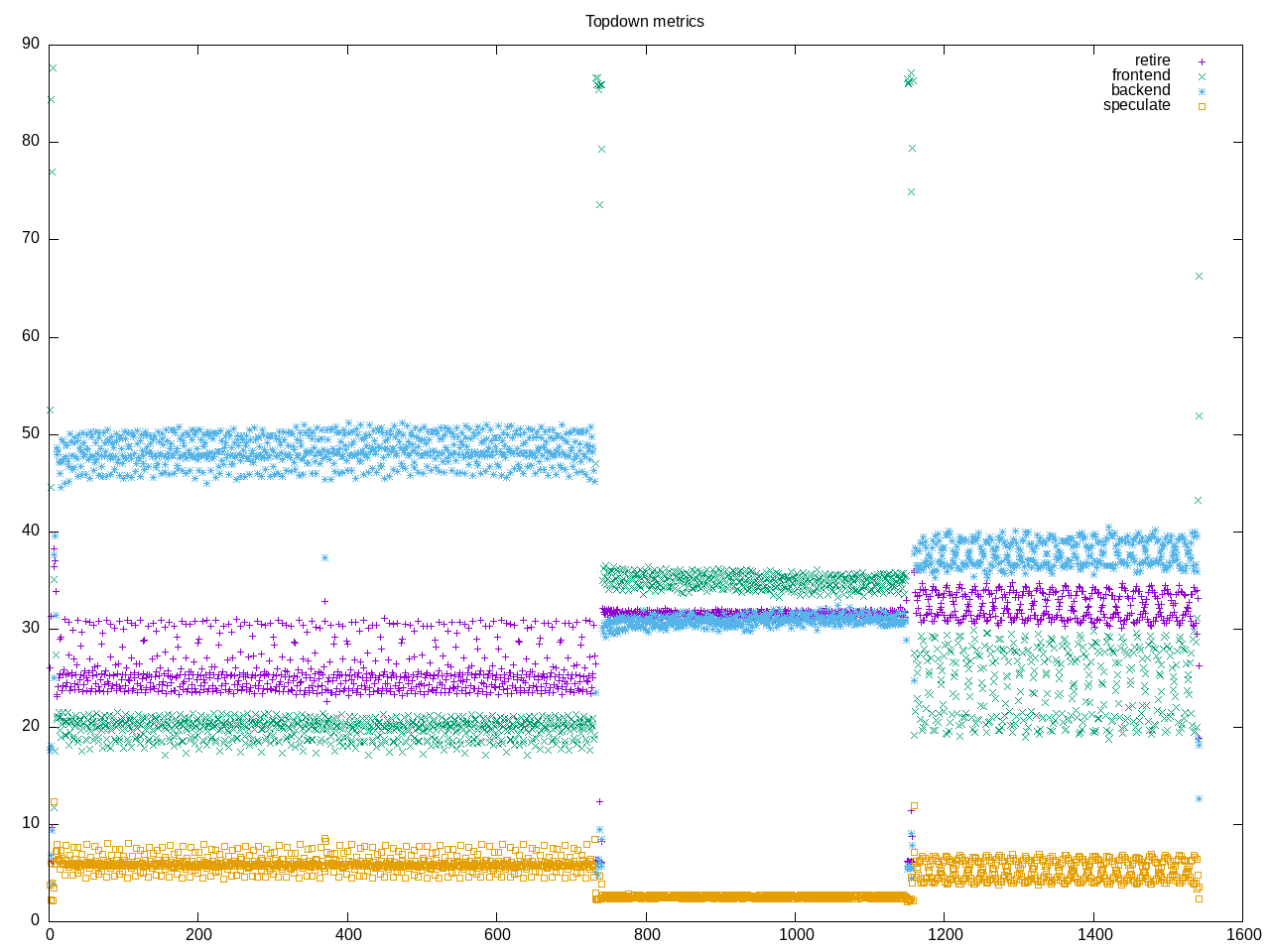

Overall topdown shows backend stalls dominating but each workload with slightly different profiles particularly the amount of frontend/backend stalls.
AMD metrics grouped together summary shows floating point code with moderate number of branches.
elapsed 1544.222
on_cpu 0.929 # 14.87 / 16 cores
utime 22862.002
stime 97.298
nvcsw 5096488 # 74.55%
nivcsw 1739487 # 25.45%
inblock 256 # 0.17/sec
onblock 14856 # 9.62/sec
cpu-clock 22963044408516 # 22963.044 seconds
task-clock 22964554666466 # 22964.555 seconds
page faults 763574 # 33.250/sec
context switches 6843527 # 298.004/sec
cpu migrations 105915 # 4.612/sec
major page faults 3 # 0.000/sec
minor page faults 763571 # 33.250/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 9634462408321 # 87.422 branches per 1000 inst
branch misses 224077950950 # 2.33% branch miss
conditional 5989445877683 # 54.348 conditional branches per 1000 inst
indirect 615593307750 # 5.586 indirect branches per 1000 inst
cpu-cycles 91048561979812 # 3.68 GHz
instructions 110241188818645 # 1.21 IPC
slots 182062196321010 #
retiring 39056699611588 # 21.5% (29.0%)
-- ucode 68402854315 # 0.0%
-- fastpath 38988296757273 # 21.4%
frontend 34087251629845 # 18.7% (25.3%)
-- latency 24525417770772 # 13.5%
-- bandwidth 9561833859073 # 5.3%
backend 54966957402417 # 30.2% (40.8%)
-- cpu 18646175227647 # 10.2%
-- memory 36320782174770 # 19.9%
speculation 6473364404284 # 3.6% ( 4.8%)
-- branch mispredict 6109336851991 # 3.4%
-- pipeline restart 364027552293 # 0.2%
smt-contention 47477116668028 # 26.1% ( 0.0%)
cpu-cycles 90992949840803 # 3.68 GHz
instructions 110221349618840 # 1.21 IPC
instructions 36742471260019 # 67.276 l2 access per 1000 inst
l2 hit from l1 2395790225846 # 3.75% l2 miss
l2 miss from l1 59983147918 #
l2 hit from l2 pf 43433251732 #
l3 hit from l2 pf 25336176898 #
l3 miss from l2 pf 7343561271 #
instructions 36727462123726 # 340.122 float per 1000 inst
float 512 66 # 0.000 AVX-512 per 1000 inst
float 256 672 # 0.000 AVX-256 per 1000 inst
float 128 12491831036792 # 340.122 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 4 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 2110.124
on_cpu 0.905 # 14.48 / 16 cores
utime 30455.635
stime 100.074
nvcsw 6781397 # 79.56%
nivcsw 1741812 # 20.44%
inblock 619080 # 293.39/sec
onblock 3608 # 1.71/sec
cpu-clock 30553924914659 # 30553.925 seconds
task-clock 30555699410017 # 30555.699 seconds
page faults 745731 # 24.406/sec
context switches 8533593 # 279.280/sec
cpu migrations 407712 # 13.343/sec
major page faults 480 # 0.016/sec
minor page faults 745251 # 24.390/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 9629081309023 # 87.361 branches per 1000 inst
branch misses 246716502984 # 2.56% branch miss
conditional 9629081324607 # 87.361 conditional branches per 1000 inst
indirect 3046285794073 # 27.638 indirect branches per 1000 inst
slots 150149147058038 #
retiring 63179454555339 # 42.1% (42.1%)
-- ucode 3495132839894 # 2.3%
-- fastpath 59684321715445 # 39.8%
frontend 34116202842742 # 22.7% (22.7%)
-- latency 20312273735714 # 13.5%
-- bandwidth 13803929107028 # 9.2%
backend 33291561383047 # 22.2% (22.2%)
-- cpu 19378372968340 # 12.9%
-- memory 13913188414707 # 9.3%
speculation 18977631365379 # 12.6% (12.6%)
-- branch mispredict 18538903435909 # 12.3%
-- pipeline restart 438727929470 # 0.3%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 94207477479198 # 2.80 GHz
instructions 129518441410678 # 1.37 IPC
l2 access 3838689652808 # 60.556 l2 access per 1000 inst
l2 miss 274555835292 # 7.15% l2 miss
Process overview shows a set of named worked processes for the CLI
461 processes
19 appleseed.cli 194557.01 683.21
6 worker_002 34187.89 104.13
6 worker_003 34187.89 104.13
6 worker_004 34187.89 104.13
6 worker_005 34187.89 104.13
6 worker_006 34187.89 104.13
6 worker_007 34187.89 104.13
6 worker_008 34187.89 104.13
6 worker_009 34187.89 104.13
6 worker_010 34187.89 104.13
6 worker_011 34187.89 104.13
6 worker_012 34187.89 104.13
6 worker_013 34187.89 104.13
6 worker_014 34187.89 104.13
6 worker_015 34187.89 104.13
6 pass_manager 34187.88 104.13
6 worker_000 34187.88 104.13
6 worker_001 34187.88 104.13
68 clinfo 16.53 6.32
38 vulkaninfo 0.95 1.23
6 glxinfo:gdrv0 0.12 0.10
4 vulkani:disk$0 0.10 0.13
6 php 0.07 0.16
6 clang 0.06 0.06
2 glxinfo 0.06 0.04
2 glxinfo:cs0 0.06 0.04
2 glxinfo:disk$0 0.06 0.04
2 glxinfo:sh0 0.06 0.04
2 glxinfo:shlo0 0.06 0.04
2 llvmpipe-0 0.05 0.07
2 llvmpipe-1 0.05 0.07
2 llvmpipe-10 0.05 0.07
2 llvmpipe-11 0.05 0.07
2 llvmpipe-12 0.05 0.07
2 llvmpipe-13 0.05 0.07
2 llvmpipe-14 0.05 0.07
2 llvmpipe-15 0.05 0.07
2 llvmpipe-2 0.05 0.07
2 llvmpipe-3 0.05 0.07
2 llvmpipe-4 0.05 0.07
2 llvmpipe-5 0.05 0.07
2 llvmpipe-6 0.05 0.07
2 llvmpipe-7 0.05 0.07
2 llvmpipe-8 0.05 0.07
2 llvmpipe-9 0.05 0.07
1 lspci 0.01 0.02
3 rocminfo 0.00 0.03
1 ps 0.00 0.01
79 sh 0.00 0.00
12 gcc 0.00 0.00
12 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 phoronix-test-s 0.00 0.00
3 appleseed-bench 0.00 0.00
2 dconf worker 0.00 0.00
2 gmain 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 cc 0.00 0.00
1 date 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
47 maximum processes
An example computation structure
2652887) appleseed-bench cpu=13 start=5.82 finish=727.07
2652888) appleseed.cli cpu=2 start=5.82 finish=727.01
2652889) appleseed.cli cpu=7 start=6.03 finish=727.01
2652890) appleseed.cli cpu=11 start=6.03 finish=727.01
2652891) appleseed.cli cpu=3 start=6.03 finish=727.01
2652892) appleseed.cli cpu=4 start=6.03 finish=727.01
2652893) appleseed.cli cpu=10 start=6.03 finish=727.01
2652894) appleseed.cli cpu=13 start=6.03 finish=727.01
2652895) appleseed.cli cpu=8 start=6.03 finish=727.01
2652896) appleseed.cli cpu=5 start=6.03 finish=727.01
2652897) appleseed.cli cpu=9 start=6.03 finish=727.01
2652898) appleseed.cli cpu=0 start=6.03 finish=727.01
2652899) appleseed.cli cpu=1 start=6.03 finish=727.01
2652900) appleseed.cli cpu=10 start=6.03 finish=727.01
2652901) appleseed.cli cpu=15 start=6.03 finish=727.01
2652902) appleseed.cli cpu=12 start=6.03 finish=727.01
2652903) appleseed.cli cpu=14 start=6.03 finish=727.01
2652904) appleseed.cli cpu=6 start=6.03 finish=727.01
2652905) worker_000 cpu=13 start=8.24 finish=367.37
2652906) worker_001 cpu=10 start=8.24 finish=367.37
2652907) worker_002 cpu=2 start=8.24 finish=367.37
2652908) worker_003 cpu=6 start=8.24 finish=367.37
2652909) worker_004 cpu=0 start=8.24 finish=367.37
2652910) worker_005 cpu=4 start=8.24 finish=367.37
2652911) worker_006 cpu=1 start=8.24 finish=367.37
2652912) worker_007 cpu=15 start=8.24 finish=367.37
2652913) worker_008 cpu=12 start=8.24 finish=367.37
2652914) worker_009 cpu=5 start=8.24 finish=367.37
2652915) worker_010 cpu=14 start=8.24 finish=367.37
2652916) worker_011 cpu=8 start=8.24 finish=367.37
2652917) worker_012 cpu=3 start=8.24 finish=367.37
2652918) worker_013 cpu=10 start=8.24 finish=367.37
2652919) worker_014 cpu=11 start=8.24 finish=367.37
2652920) worker_015 cpu=13 start=8.24 finish=367.38
2652921) pass_manager cpu=12 start=8.24 finish=367.37
2652925) worker_000 cpu=12 start=367.41 finish=726.97
2652926) worker_001 cpu=7 start=367.41 finish=726.97
2652927) worker_002 cpu=13 start=367.42 finish=726.97
2652928) worker_003 cpu=1 start=367.42 finish=726.97
2652929) worker_004 cpu=15 start=367.42 finish=726.97
2652930) worker_005 cpu=13 start=367.42 finish=726.97
2652931) worker_006 cpu=14 start=367.42 finish=726.97
2652932) worker_007 cpu=9 start=367.42 finish=726.97
2652933) worker_008 cpu=12 start=367.42 finish=726.97
2652934) worker_009 cpu=0 start=367.42 finish=726.97
2652935) worker_010 cpu=8 start=367.42 finish=726.97
2652936) worker_011 cpu=11 start=367.42 finish=726.97
2652937) worker_012 cpu=3 start=367.42 finish=726.97
2652938) worker_013 cpu=4 start=367.42 finish=726.97
2652939) worker_014 cpu=6 start=367.42 finish=726.97
2652940) worker_015 cpu=5 start=367.42 finish=726.97
2652941) pass_manager cpu=4 start=367.42 finish=726.96
