A video encoder for the vp9 format. Runs with six test cases. Launches threads p to the 30 but also variable.

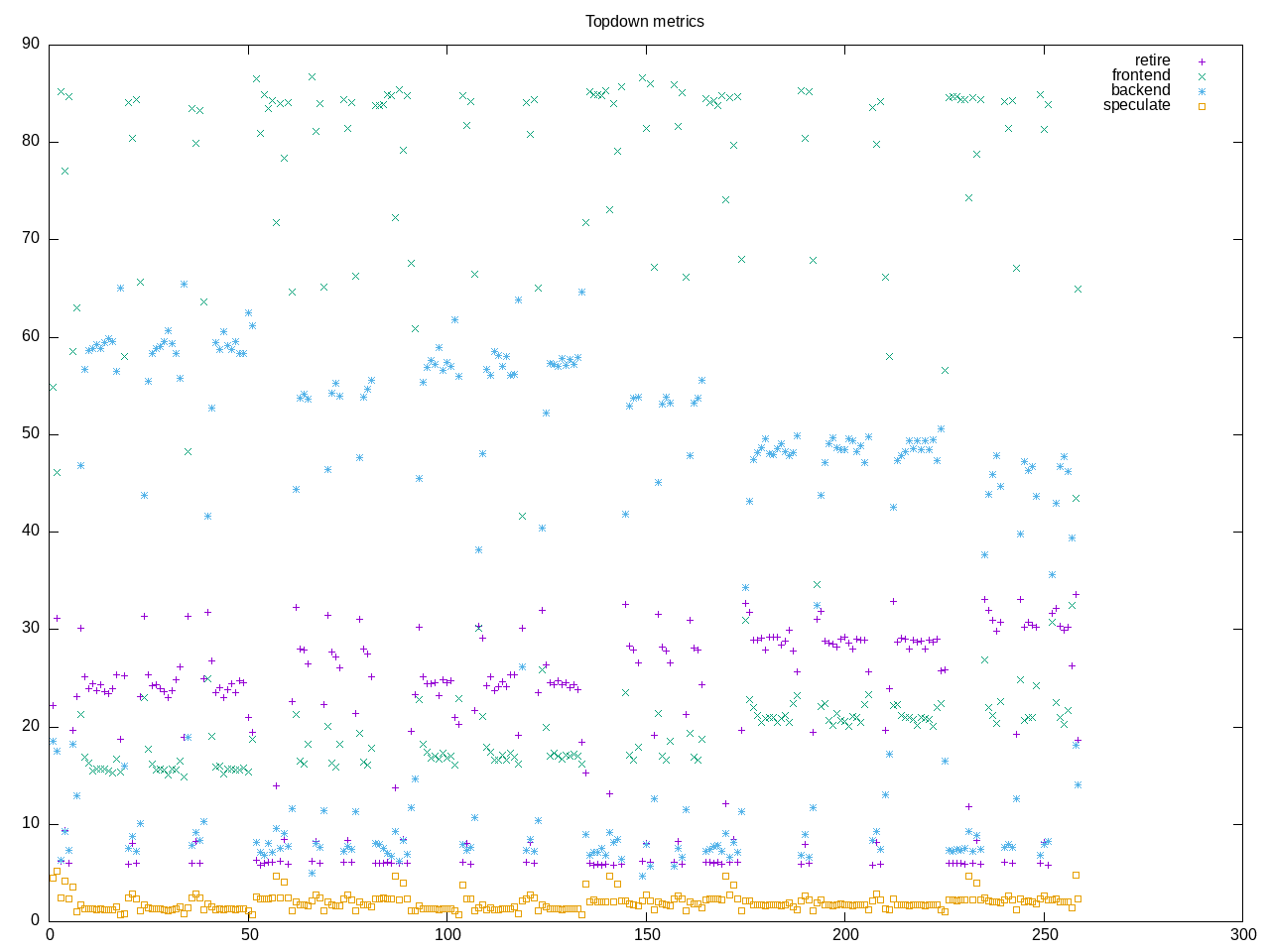

Topdown profile shows medium level retirement rate limited by some backend stalls and with frontend stalls less of a factor. Also some variation between test cases.
AMD metrics shows some floating point and moderate number of branches.
elapsed 266.392
on_cpu 0.418 # 6.69 / 16 cores
utime 1708.096
stime 73.706
nvcsw 2218418 # 79.83%
nivcsw 560492 # 20.17%
inblock 600 # 2.25/sec
onblock 14184 # 53.24/sec
cpu-clock 1782258318300 # 1782.258 seconds
task-clock 1782953304677 # 1782.953 seconds
page faults 14950365 # 8385.169/sec
context switches 2780028 # 1559.226/sec
cpu migrations 387964 # 217.596/sec
major page faults 23 # 0.013/sec
minor page faults 14950342 # 8385.156/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 656720657493 # 76.023 branches per 1000 inst
branch misses 10997348830 # 1.67% branch miss
conditional 502666679558 # 58.190 conditional branches per 1000 inst
indirect 21010290401 # 2.432 indirect branches per 1000 inst
cpu-cycles 7046430654174 # 1.70 GHz
instructions 8624634778235 # 1.22 IPC
slots 14123897786988 #
retiring 3071043407476 # 21.7% (26.7%)
-- ucode 85466210742 # 0.6%
-- fastpath 2985577196734 # 21.1%
frontend 2189782239321 # 15.5% (19.1%)
-- latency 1147789014888 # 8.1%
-- bandwidth 1041993224433 # 7.4%
backend 6045479931307 # 42.8% (52.6%)
-- cpu 2288298994869 # 16.2%
-- memory 3757180936438 # 26.6%
speculation 176219975819 # 1.2% ( 1.5%)
-- branch mispredict 170597713920 # 1.2%
-- pipeline restart 5622261899 # 0.0%
smt-contention 2641149276223 # 18.7% ( 0.0%)
cpu-cycles 7028720585099 # 1.70 GHz
instructions 8631733824331 # 1.23 IPC
instructions 2880802386642 # 61.126 l2 access per 1000 inst
l2 hit from l1 139518253857 # 12.79% l2 miss
l2 miss from l1 11080156914 #
l2 hit from l2 pf 25138535837 #
l3 hit from l2 pf 4529358713 #
l3 miss from l2 pf 6905820477 #
instructions 2876027823141 # 127.789 float per 1000 inst
float 512 77 # 0.000 AVX-512 per 1000 inst
float 256 574 # 0.000 AVX-256 per 1000 inst
float 128 367523319628 # 127.789 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 2 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 955.109
on_cpu 0.483 # 7.72 / 16 cores
utime 7090.140
stime 286.201
nvcsw 10235560 # 77.18%
nivcsw 3027090 # 22.82%
inblock 81444768 # 85272.71/sec
onblock 5920 # 6.20/sec
cpu-clock 7374837680273 # 7374.838 seconds
task-clock 7377544161006 # 7377.544 seconds
page faults 56516061 # 7660.552/sec
context switches 13267164 # 1798.317/sec
cpu migrations 2698093 # 365.717/sec
major page faults 76 # 0.010/sec
minor page faults 56515985 # 7660.542/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 2374199693841 # 76.574 branches per 1000 inst
branch misses 30873470201 # 1.30% branch miss
conditional 2374199980081 # 76.574 conditional branches per 1000 inst
indirect 714692719974 # 23.051 indirect branches per 1000 inst
slots 48054039135266 #
retiring 23387060560527 # 48.7% (48.7%)
-- ucode 3022764780478 # 6.3%
-- fastpath 20364295780049 # 42.4%
frontend 8537158800292 # 17.8% (17.8%)
-- latency 5088733620331 # 10.6%
-- bandwidth 3448425179961 # 7.2%
backend 13737332127616 # 28.6% (28.6%)
-- cpu 3478462484718 # 7.2%
-- memory 10258869642898 # 21.3%
speculation 2988699083208 # 6.2% ( 6.2%)
-- branch mispredict 2758680527908 # 5.7%
-- pipeline restart 230018555300 # 0.5%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 23749625878854 # 1.55 GHz
instructions 35707894166039 # 1.50 IPC
l2 access 866445792868 # 51.238 l2 access per 1000 inst
l2 miss 223753253127 # 25.82% l2 miss
Process overview concentrates on the SvtVp9EncApp
2620 processes
2250 SvtVp9EncApp 107501.07 4524.13
68 clinfo 16.27 6.65
38 vulkaninfo 1.13 0.96
6 glxinfo:gdrv0 0.19 0.09
4 vulkani:disk$0 0.12 0.10
6 php 0.09 0.16
2 glxinfo 0.09 0.03
2 glxinfo:cs0 0.09 0.03
2 glxinfo:disk$0 0.09 0.03
2 glxinfo:sh0 0.09 0.03
2 glxinfo:shlo0 0.09 0.03
2 llvmpipe-0 0.06 0.05
2 llvmpipe-1 0.06 0.05
2 llvmpipe-10 0.06 0.05
2 llvmpipe-11 0.06 0.05
2 llvmpipe-12 0.06 0.05
2 llvmpipe-13 0.06 0.05
2 llvmpipe-14 0.06 0.05
2 llvmpipe-15 0.06 0.05
2 llvmpipe-2 0.06 0.05
2 llvmpipe-3 0.06 0.05
2 llvmpipe-4 0.06 0.05
2 llvmpipe-5 0.06 0.05
2 llvmpipe-6 0.06 0.05
2 llvmpipe-7 0.06 0.05
2 llvmpipe-8 0.06 0.05
2 llvmpipe-9 0.06 0.05
6 clang 0.05 0.07
3 rocminfo 0.00 0.03
1 lspci 0.00 0.02
1 ps 0.00 0.01
92 sh 0.00 0.00
18 svt-vp9 0.00 0.00
13 gcc 0.00 0.00
11 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 phoronix-test-s 0.00 0.00
3 gmain 0.00 0.00
2 cc 0.00 0.00
2 dconf worker 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 date 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
73 maximum processes
Most of these get launched from the thread app
2895193) svt-vp9 cpu=10 start=5.69 finish=17.95
2895194) SvtVp9EncApp cpu=11 start=5.69 finish=17.87
2895195) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895196) SvtVp9EncApp cpu=14 start=6.78 finish=17.57
2895197) SvtVp9EncApp cpu=0 start=6.78 finish=6.78
2895198) SvtVp9EncApp cpu=9 start=6.78 finish=17.57
2895199) SvtVp9EncApp cpu=2 start=6.78 finish=6.78
2895200) SvtVp9EncApp cpu=4 start=6.78 finish=17.57
2895201) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895202) SvtVp9EncApp cpu=6 start=6.78 finish=17.57
2895203) SvtVp9EncApp cpu=13 start=6.78 finish=6.78
2895204) SvtVp9EncApp cpu=4 start=6.78 finish=17.57
2895205) SvtVp9EncApp cpu=15 start=6.78 finish=6.78
2895206) SvtVp9EncApp cpu=0 start=6.78 finish=17.57
2895207) SvtVp9EncApp cpu=9 start=6.78 finish=6.78
2895208) SvtVp9EncApp cpu=2 start=6.78 finish=17.57
2895209) SvtVp9EncApp cpu=11 start=6.78 finish=6.78
2895210) SvtVp9EncApp cpu=4 start=6.78 finish=17.57
2895211) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895212) SvtVp9EncApp cpu=2 start=6.78 finish=17.57
2895213) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895214) SvtVp9EncApp cpu=0 start=6.78 finish=17.57
2895215) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895216) SvtVp9EncApp cpu=9 start=6.78 finish=17.57
2895217) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895218) SvtVp9EncApp cpu=3 start=6.78 finish=17.57
2895219) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895220) SvtVp9EncApp cpu=14 start=6.78 finish=17.57
2895221) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895222) SvtVp9EncApp cpu=6 start=6.78 finish=17.56
2895223) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895224) SvtVp9EncApp cpu=13 start=6.78 finish=17.56
2895225) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895226) SvtVp9EncApp cpu=6 start=6.78 finish=17.56
2895227) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895228) SvtVp9EncApp cpu=4 start=6.78 finish=17.56
2895229) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895230) SvtVp9EncApp cpu=13 start=6.78 finish=17.56
2895231) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895232) SvtVp9EncApp cpu=8 start=6.78 finish=17.56
2895233) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895234) SvtVp9EncApp cpu=7 start=6.78 finish=17.56
2895235) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895236) SvtVp9EncApp cpu=13 start=6.78 finish=17.56
2895237) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895238) SvtVp9EncApp cpu=12 start=6.78 finish=17.56
2895239) SvtVp9EncApp cpu=2 start=6.78 finish=6.78
2895240) SvtVp9EncApp cpu=4 start=6.78 finish=17.56
2895241) SvtVp9EncApp cpu=11 start=6.78 finish=6.78
2895242) SvtVp9EncApp cpu=3 start=6.78 finish=17.56
2895243) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895244) SvtVp9EncApp cpu=0 start=6.78 finish=17.56
2895245) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895246) SvtVp9EncApp cpu=15 start=6.78 finish=17.56
2895247) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895248) SvtVp9EncApp cpu=2 start=6.78 finish=17.56
2895249) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895250) SvtVp9EncApp cpu=9 start=6.78 finish=17.56
2895251) SvtVp9EncApp cpu=15 start=6.78 finish=6.78
2895252) SvtVp9EncApp cpu=4 start=6.78 finish=17.56
2895253) SvtVp9EncApp cpu=2 start=6.78 finish=6.78
2895254) SvtVp9EncApp cpu=10 start=6.78 finish=17.56
2895255) SvtVp9EncApp cpu=2 start=6.78 finish=6.78
2895256) SvtVp9EncApp cpu=0 start=6.78 finish=17.56
2895257) SvtVp9EncApp cpu=15 start=6.78 finish=6.78
2895258) SvtVp9EncApp cpu=14 start=6.78 finish=17.56
2895259) SvtVp9EncApp cpu=11 start=6.78 finish=6.78
2895260) SvtVp9EncApp cpu=6 start=6.78 finish=17.56
2895261) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895262) SvtVp9EncApp cpu=9 start=6.78 finish=17.56
2895263) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895264) SvtVp9EncApp cpu=14 start=6.78 finish=17.56
2895265) SvtVp9EncApp cpu=11 start=6.78 finish=6.78
2895266) SvtVp9EncApp cpu=12 start=6.78 finish=17.56
2895267) SvtVp9EncApp cpu=14 start=6.78 finish=6.78
2895268) SvtVp9EncApp cpu=3 start=6.78 finish=17.56
2895269) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895270) SvtVp9EncApp cpu=2 start=6.78 finish=17.56
2895271) SvtVp9EncApp cpu=0 start=6.78 finish=6.78
2895272) SvtVp9EncApp cpu=10 start=6.78 finish=17.56
2895273) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895274) SvtVp9EncApp cpu=4 start=6.78 finish=17.56
2895275) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895276) SvtVp9EncApp cpu=14 start=6.78 finish=17.56
2895277) SvtVp9EncApp cpu=5 start=6.78 finish=6.78
2895278) SvtVp9EncApp cpu=10 start=6.78 finish=17.56
2895279) SvtVp9EncApp cpu=0 start=6.78 finish=6.78
2895280) SvtVp9EncApp cpu=1 start=6.78 finish=17.56
2895281) SvtVp9EncApp cpu=14 start=6.79 finish=6.79
2895282) SvtVp9EncApp cpu=6 start=6.79 finish=17.56
2895283) SvtVp9EncApp cpu=11 start=6.79 finish=6.79
2895284) SvtVp9EncApp cpu=14 start=6.79 finish=17.56
2895285) SvtVp9EncApp cpu=0 start=6.79 finish=6.79
2895286) SvtVp9EncApp cpu=4 start=6.79 finish=17.56
2895287) SvtVp9EncApp cpu=2 start=6.79 finish=6.79
2895288) SvtVp9EncApp cpu=2 start=6.79 finish=17.56
2895289) SvtVp9EncApp cpu=5 start=6.79 finish=6.79
2895290) SvtVp9EncApp cpu=13 start=6.79 finish=17.56
2895291) SvtVp9EncApp cpu=5 start=6.79 finish=6.79
2895292) SvtVp9EncApp cpu=7 start=6.79 finish=17.56
2895293) SvtVp9EncApp cpu=15 start=6.79 finish=6.79
2895294) SvtVp9EncApp cpu=9 start=6.79 finish=17.56
2895295) SvtVp9EncApp cpu=14 start=6.79 finish=6.79
2895296) SvtVp9EncApp cpu=15 start=6.79 finish=17.56
2895297) SvtVp9EncApp cpu=14 start=6.79 finish=6.79
2895298) SvtVp9EncApp cpu=10 start=6.79 finish=17.56
2895299) SvtVp9EncApp cpu=11 start=6.79 finish=6.79
2895300) SvtVp9EncApp cpu=12 start=6.79 finish=17.56
2895301) SvtVp9EncApp cpu=11 start=6.79 finish=6.79
2895302) SvtVp9EncApp cpu=0 start=6.79 finish=17.56
2895303) SvtVp9EncApp cpu=5 start=6.79 finish=6.79
2895304) SvtVp9EncApp cpu=6 start=6.79 finish=17.56
2895305) SvtVp9EncApp cpu=5 start=6.79 finish=6.79
2895306) SvtVp9EncApp cpu=3 start=6.79 finish=17.56
2895307) SvtVp9EncApp cpu=15 start=6.79 finish=6.79
2895308) SvtVp9EncApp cpu=8 start=6.79 finish=17.56
2895309) SvtVp9EncApp cpu=15 start=6.79 finish=6.79
2895310) SvtVp9EncApp cpu=12 start=6.79 finish=17.56
2895311) SvtVp9EncApp cpu=14 start=6.79 finish=6.79
2895312) SvtVp9EncApp cpu=14 start=6.79 finish=17.56
2895313) SvtVp9EncApp cpu=14 start=6.79 finish=6.79
2895314) SvtVp9EncApp cpu=3 start=6.79 finish=17.56
2895315) SvtVp9EncApp cpu=5 start=6.79 finish=6.79
2895316) SvtVp9EncApp cpu=2 start=6.79 finish=17.56
2895317) SvtVp9EncApp cpu=5 start=6.79 finish=6.79
2895318) SvtVp9EncApp cpu=14 start=6.79 finish=17.56
