A benchmark of the Apache Spark using the PySpark interface. Apache Spark is an open-source unified analytics engine. There are four tests each with different sub-scenarios.

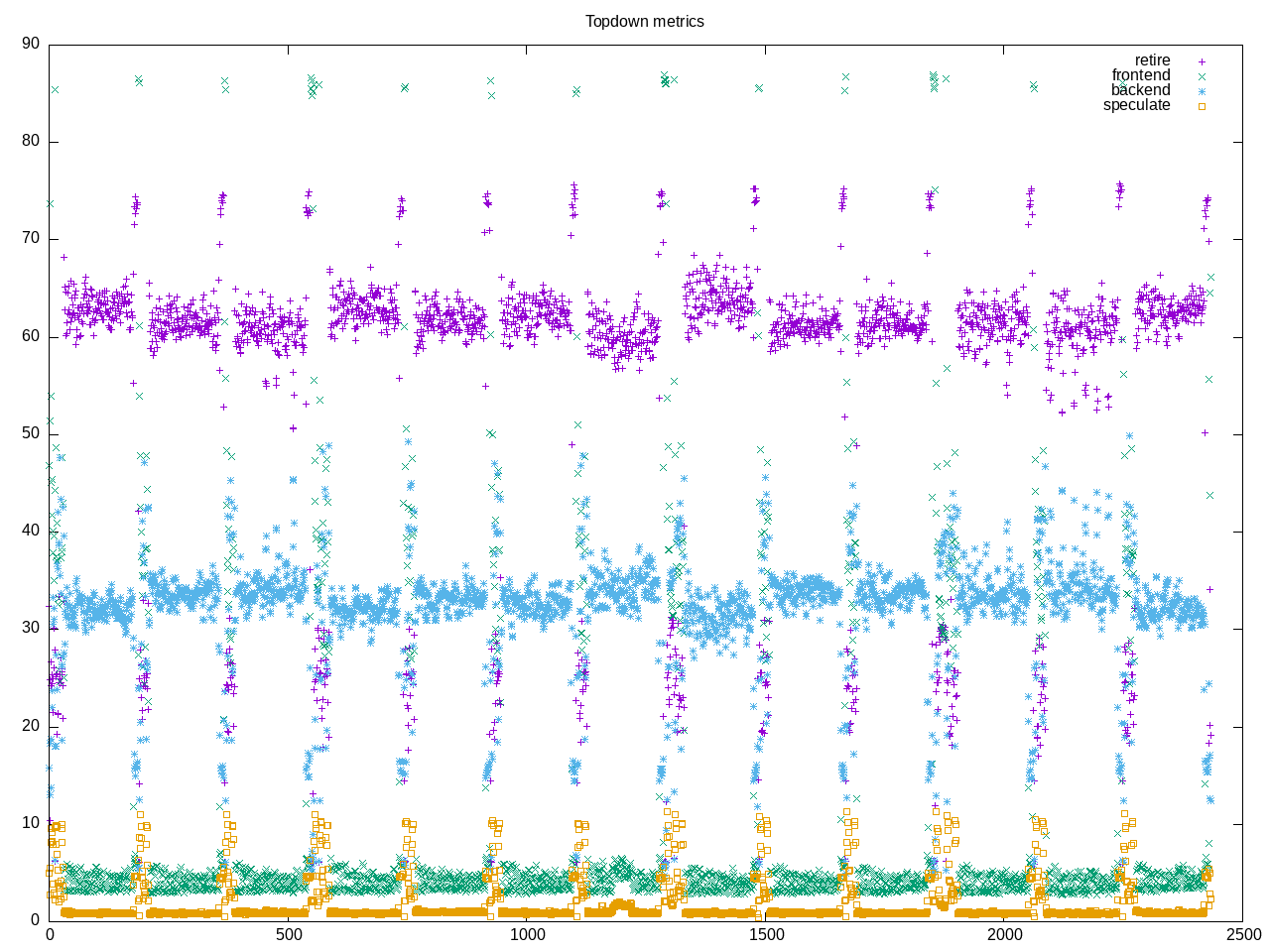

Topdown profile shows a high retirement rate with some backend stalls.
AMD metrics show overall 1.6 cores active, little floating point and high retirement.
elapsed 2951.391
on_cpu 0.101 # 1.61 / 16 cores
utime 4425.534
stime 328.609
nvcsw 4856288 # 86.78%
nivcsw 739739 # 13.22%
inblock 8 # 0.00/sec
onblock 13977128 # 4735.78/sec
cpu-clock 42663814969283 # 42663.815 seconds
task-clock 42665967867809 # 42665.968 seconds
page faults 44053031 # 1032.510/sec
context switches 6717843 # 157.452/sec
cpu migrations 931799 # 21.839/sec
major page faults 1186 # 0.028/sec
minor page faults 44006031 # 1031.408/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 64285744518706 # 177.115 branches per 1000 inst
branch misses 116204596704 # 0.18% branch miss
conditional 50330874718377 # 138.668 conditional branches per 1000 inst
indirect 5391625116869 # 14.855 indirect branches per 1000 inst
cpu-cycles 219995811005385 # 3.55 GHz
instructions 474805279426321 # 2.16 IPC
slots 441582327330810 #
retiring 157423348696856 # 35.6% (58.5%) high
-- ucode 567875726893 # 0.1%
-- fastpath 156855472969963 # 35.5%
frontend 19549579490013 # 4.4% ( 7.3%)
-- latency 13520739667860 # 3.1%
-- bandwidth 6028839822153 # 1.4%
backend 88382195394937 # 20.0% (32.8%)
-- cpu 11254725399387 # 2.5%
-- memory 77127469995550 # 17.5%
speculation 3802926667430 # 0.9% ( 1.4%)
-- branch mispredict 2933296078179 # 0.7%
-- pipeline restart 869630589251 # 0.2%
smt-contention 172423207228753 # 39.0% ( 0.0%)
cpu-cycles 218890360802921 # 3.54 GHz
instructions 474914641892602 # 2.17 IPC
instructions 158472945209461 # 13.127 l2 access per 1000 inst
l2 hit from l1 2033359144055 # 3.50% l2 miss
l2 miss from l1 46451580342 #
l2 hit from l2 pf 20499319858 #
l3 hit from l2 pf 12301929165 #
l3 miss from l2 pf 14068223396 #
instructions 158458706917338 # 19.971 float per 1000 inst
float 512 3950 # 0.000 AVX-512 per 1000 inst
float 256 503524 # 0.000 AVX-256 per 1000 inst
float 128 3164589063781 # 19.971 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 37917 # 0.000 scalar per 1000 inst
instructions 2709961 #
opcache 1001966 # 369.734 opcache per 1000 inst
opcache miss 534211 # 53.3% opcache miss rate
l1 dTLB miss 7266 # 2.681 L1 dTLB per 1000 inst
l2 dTLB miss 1171 # 0.432 L2 dTLB per 1000 inst
instructions 2703521 #
icache 1299232 # 480.570 icache per 1000 inst
icache miss 111019 # 8.5% icache miss rate
l1 iTLB miss 13 # 0.005 L1 iTLB per 1000 inst
l2 iTLB miss 0 # 0.000 L2 iTLB per 1000 inst
tlb flush 19 # 0.007 TLB flush per 1000 inst
Intel metrics
elapsed 16920.126
on_cpu 0.261 # 4.17 / 16 cores
utime 68536.052
stime 2033.421
nvcsw 20512849 # 60.38%
nivcsw 13458961 # 39.62%
inblock 348193440 # 20578.66/sec
onblock 533099000 # 31506.80/sec
cpu-clock 242347906374008 # 242347.906 seconds
task-clock 242358478400143 # 242358.478 seconds
page faults 351178559 # 1449.005/sec
context switches 47074935 # 194.237/sec
cpu migrations 5096975 # 21.031/sec
major page faults 29159 # 0.120/sec
minor page faults 350541678 # 1446.377/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 278766653515579 # 177.353 branches per 1000 inst
branch misses 798092266132 # 0.29% branch miss
conditional 278766666338011 # 177.353 conditional branches per 1000 ins
t
indirect 62205170112713 # 39.575 indirect branches per 1000 inst
slots 1007749798569482 #
retiring 554744105785745 # 55.0% (55.0%) high
-- ucode 31026419537826 # 3.1%
-- fastpath 523717686247919 # 52.0%
frontend 291111717445577 # 28.9% (28.9%)
-- latency 100773439754211 # 10.0%
-- bandwidth 190338277691366 # 18.9%
backend 123976744622939 # 12.3% (12.3%) low
-- cpu 39235397453279 # 3.9%
-- memory 84741347169660 # 8.4%
speculation 38960763394989 # 3.9% ( 3.9%)
-- branch mispredict 35041534228150 # 3.5%
-- pipeline restart 3919229166839 # 0.4%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 481594355727426 # 1.78 GHz
instructions 915628982456618 # 1.90 IPC
l2 access 6943696813220 # 10.398 l2 access per 1000 inst
l2 miss 1685572410210 # 24.27% l2 miss
cpu-cycles 364846275080470 # 25.2% memory latency
load stalls 90138769389868 # 13.4% l1 bound
l1 miss 41084570173389 # 3.7% l2 bound
l2 miss 27487531859349 # 1.6% l3 bound
l3 miss 21589200763974 # 5.9% dram bound
store_stalls 1939852578337 # 0.5% store bound
Process overview includes many processes and a Java set of threads with names by thread, only first part shown here.
114616 processes
640 dispatcher-even 76964.32 3834.19
741 block-manager-s 66938.04 6289.06
494 block-manager-a 44631.10 4193.59
1994 python3 42767.48 1275.63
320 shuffle-client- 38489.52 1920.40
320 shuffle-server- 38489.52 1920.40
320 map-output-disp 38464.08 1912.89
160 task-result-get 19229.00 955.73
162 QueryStageCreat 15328.79 1250.05
120 spark-listener- 14421.84 716.89
162 java 9638.24 483.08
80 dispatcher-Bloc 9619.42 479.07
81 Finalizer 4819.24 241.59
80 Common-Cleaner 4819.23 241.56
40 org.apache.hado 4811.23 240.09
40 rpc-boss-3-1 4811.23 240.09
40 shuffle-boss-6- 4811.23 240.09
40 rpc-server-4-1 4811.19 240.05
40 rpc-server-4-2 4811.18 240.05
40 rpc-server-4-3 4811.18 240.05
40 rpc-server-4-4 4811.18 240.05
40 rpc-server-4-5 4811.18 240.05
40 rpc-server-4-6 4811.18 240.05
40 rpc-server-4-7 4811.18 240.05
40 rpc-server-4-8 4811.18 240.05
40 rpc-client-1-1 4811.17 240.04
40 rpc-client-1-2 4811.17 240.04
40 rpc-client-1-3 4811.16 240.04
40 rpc-client-1-4 4811.16 240.04
40 rpc-client-1-5 4811.16 240.04
40 rpc-client-1-6 4811.16 240.04
40 rpc-client-1-7 4811.16 240.04
40 rpc-client-1-8 4811.16 240.04
40 Thread-0 4810.92 239.96
40 shutdown-hook-0 4810.73 239.88
40 element-trackin 4810.44 239.76
40 netty-rpc-env-t 4810.13 239.58
40 RemoteBlock-tem 4808.39 239.21
40 heartbeat-recei 4807.42 238.98
40 driver-heartbea 4807.34 238.97
40 task-starvation 4807.25 238.92
40 task-abort-time 4807.20 238.93
40 dag-scheduler-e 4807.03 238.90
40 context-cleaner 4807.01 238.90
40 SparkUI-57 4806.92 238.86
40 SparkUI-58 4806.91 238.86
40 SparkUI-59 4806.90 238.86
40 SparkUI-60 4806.89 238.85
40 SparkUI-61 4806.89 238.85
40 SparkUI-62 4806.88 238.85
40 SparkUI-63 4806.86 238.85
40 SparkUI-64 4806.85 238.85
40 SparkUI-65 4806.85 238.85
40 SparkUI-66 4806.85 238.85
40 executor-kill-m 4806.31 238.73
40 executor-heartb 4806.04 238.64
40 Logging-Cleaner 4805.67 238.61
40 Thread-2 4805.59 238.60
40 Thread-4 4804.58 238.53
36 Thread-20 4638.91 215.45
18 serve-DataFrame 3116.02 68.72
36 broadcast-excha 3052.28 295.16
72 checkPathsExist 391.91 32.46
4 Thread-19 164.64 22.95
144 process reaper 138.68 12318.76
3 Thread-1526 104.07 11.51
3 Thread-1525 104.03 11.49
3 Thread-1523 103.75 11.43
3 Thread-1524 103.59 11.42
3 Thread-1519 103.58 11.41
3 Thread-1522 103.53 11.41
3 Thread-1521 103.51 11.41
