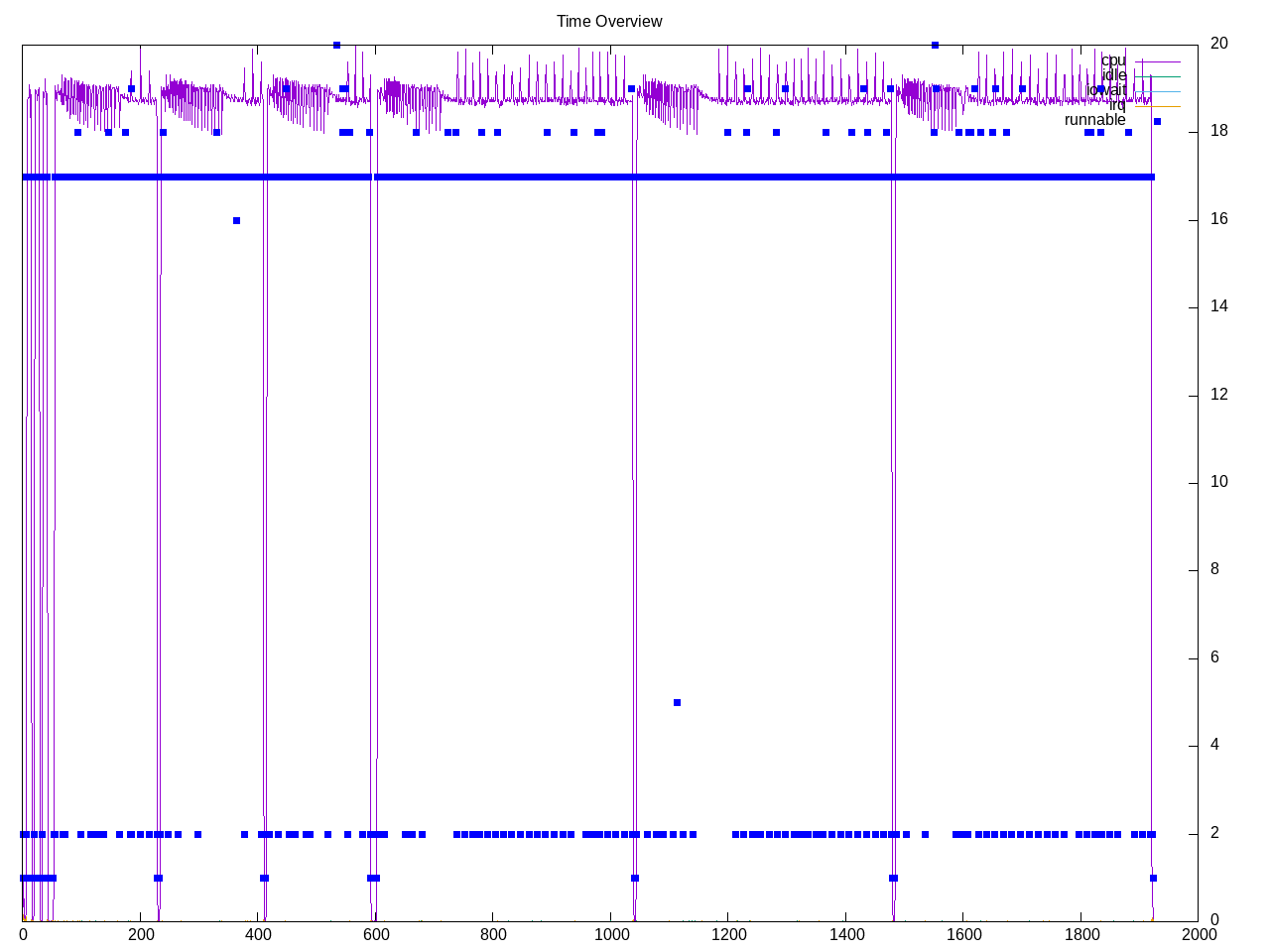

Software to simulate tsunami generation and propagation in context of early warning systems. There are three different sizes taking progressively longer time. In the chart below most of the time is spent on the third and very little on the first. This runs mostly on all cores.

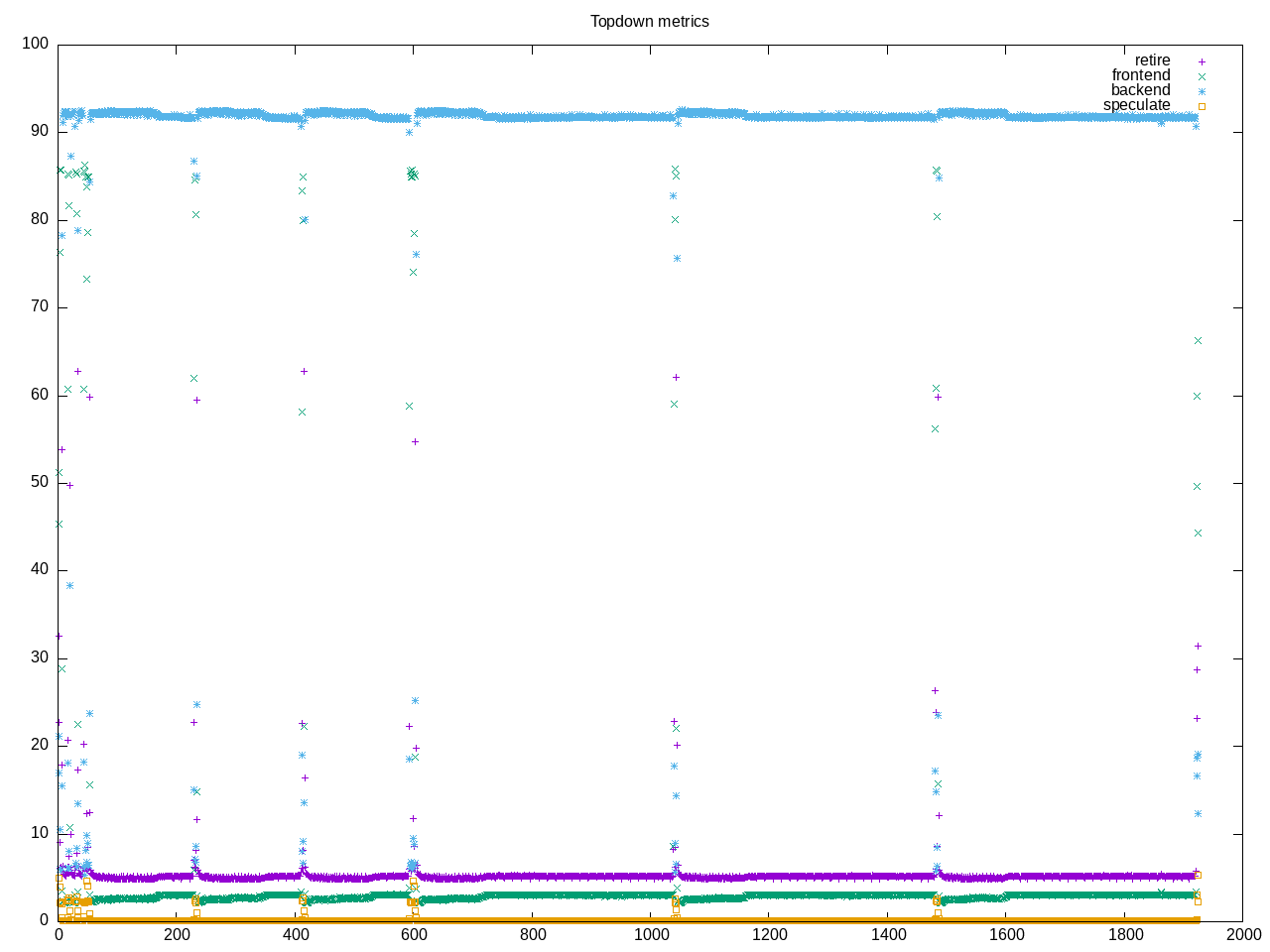

Topdown profile shows almost all time spent in backend stalls with a low retirement rate and low frontend stalls.
AMD metrics confirm running on all cores, floating point application and 78% of the time in backend memory stalls. There is also a moderate branches.
elapsed 1922.175
on_cpu 0.909 # 14.55 / 16 cores
utime 27915.570
stime 46.870
nvcsw 39963 # 12.49%
nivcsw 279964 # 87.51%
inblock 0 # 0.00/sec
onblock 69134864 # 35967.00/sec
cpu-clock 27976304339567 # 27976.304 seconds
task-clock 27977334574561 # 27977.335 seconds
page faults 696190 # 24.884/sec
context switches 329321 # 11.771/sec
cpu migrations 2685 # 0.096/sec
major page faults 2 # 0.000/sec
minor page faults 696188 # 24.884/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 6576286403261 # 197.858 branches per 1000 inst
branch misses 12811375603 # 0.19% branch miss
conditional 6436339187318 # 193.648 conditional branches per 1000 inst
indirect 45656474482 # 1.374 indirect branches per 1000 inst
cpu-cycles 128164885936695 # 4.13 GHz
instructions 33244978034460 # 0.26 IPC
slots 256292148576894 #
retiring 11974794179054 # 4.7% ( 5.2%)
-- ucode 55136358437 # 0.0%
-- fastpath 11919657820617 # 4.7%
frontend 6620260644584 # 2.6% ( 2.9%)
-- latency 2623166581578 # 1.0%
-- bandwidth 3997094063006 # 1.6%
backend 212819428524789 # 83.0% (91.9%)
-- cpu 13141066975582 # 5.1%
-- memory 199678361549207 # 77.9%
speculation 220483707629 # 0.1% ( 0.1%)
-- branch mispredict 213211749567 # 0.1%
-- pipeline restart 7271958062 # 0.0%
smt-contention 24657088493168 # 9.6% ( 0.0%)
cpu-cycles 128093523958535 # 4.11 GHz
instructions 33242235307082 # 0.26 IPC
instructions 11083055466426 # 83.023 l2 access per 1000 inst
l2 hit from l1 525246389780 # 16.29% l2 miss
l2 miss from l1 15185401164 #
l2 hit from l2 pf 260187242099 #
l3 hit from l2 pf 5910338961 #
l3 miss from l2 pf 128808134580 #
instructions 11078878763592 # 357.411 float per 1000 inst
float 512 88 # 0.000 AVX-512 per 1000 inst
float 256 466 # 0.000 AVX-256 per 1000 inst
float 128 3959710616508 # 357.411 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 0 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 4510.805
on_cpu 0.894 # 14.31 / 16 cores
utime 64492.705
stime 48.516
nvcsw 64519 # 10.62%
nivcsw 542930 # 89.38%
inblock 16 # 0.00/sec
onblock 108247000 # 23997.27/sec
cpu-clock 64550853397335 # 64550.853 seconds
task-clock 64551668228515 # 64551.668 seconds
page faults 1051104 # 16.283/sec
context switches 629765 # 9.756/sec
cpu migrations 25633 # 0.397/sec
major page faults 0 # 0.000/sec
minor page faults 1051104 # 16.283/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 10206746066589 # 196.935 branches per 1000 inst
branch misses 14336969272 # 0.14% branch miss
conditional 10206746087517 # 196.935 conditional branches per 1000 inst
indirect 1479536149642 # 28.547 indirect branches per 1000 inst
slots 179247222475460 #
retiring 21364128798497 # 11.9% (11.9%)
-- ucode 3236812364270 # 1.8%
-- fastpath 18127316434227 # 10.1%
frontend 9382535179469 # 5.2% ( 5.2%)
-- latency 7107848453687 # 4.0%
-- bandwidth 2274686725782 # 1.3%
backend 148857931511379 # 83.0% (83.0%)
-- cpu 50435694393639 # 28.1%
-- memory 98422237117740 # 54.9%
speculation 1685655017579 # 0.9% ( 0.9%)
-- branch mispredict 1663186096045 # 0.9%
-- pipeline restart 22468921534 # 0.0%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 106965986680387 # 2.32 GHz
instructions 32118256495506 # 0.30 IPC
l2 access 980416843402 # 55.491 l2 access per 1000 inst
l2 miss 448501745047 # 45.75% l2 miss
Process overview shows most time in the easywave processes.
523 processes
153 easywave 447987.04 640.32
68 clinfo 17.44 6.27
38 vulkaninfo 1.14 1.14
6 php 0.32 1.20
4 vulkani:disk$0 0.12 0.12
6 glxinfo:gdrv0 0.12 0.05
6 glxinfo:gl0 0.12 0.05
2 llvmpipe-0 0.06 0.06
2 llvmpipe-1 0.06 0.06
2 llvmpipe-10 0.06 0.06
2 llvmpipe-11 0.06 0.06
2 llvmpipe-12 0.06 0.06
2 llvmpipe-13 0.06 0.06
2 llvmpipe-14 0.06 0.06
2 llvmpipe-15 0.06 0.06
2 llvmpipe-2 0.06 0.06
2 llvmpipe-3 0.06 0.06
2 llvmpipe-4 0.06 0.06
2 llvmpipe-5 0.06 0.06
2 llvmpipe-6 0.06 0.06
2 llvmpipe-7 0.06 0.06
2 llvmpipe-8 0.06 0.06
2 llvmpipe-9 0.06 0.06
2 glxinfo 0.06 0.02
2 glxinfo:cs0 0.06 0.02
2 glxinfo:disk$0 0.06 0.02
2 glxinfo:sh0 0.06 0.02
2 glxinfo:shlo0 0.06 0.02
6 clang 0.03 0.09
18 rm 0.00 4.59
3 rocminfo 0.00 0.03
1 lspci 0.00 0.02
1 ps 0.00 0.01
86 sh 0.00 0.00
13 gcc 0.00 0.00
11 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 phoronix-test-s 0.00 0.00
4 gmain 0.00 0.00
2 cc 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 date 0.00 0.00
1 dconf worker 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
47 maximum processes
Process structure is simple with one process on each core.
931467) easywave cpu=3 start=5.58 finish=15.07
931468) easywave cpu=0 start=5.58 finish=15.04
931469) easywave cpu=12 start=6.48 finish=15.04
931470) easywave cpu=14 start=6.48 finish=15.04
931471) easywave cpu=7 start=6.48 finish=15.04
931472) easywave cpu=8 start=6.48 finish=15.04
931473) easywave cpu=9 start=6.48 finish=15.04
931474) easywave cpu=2 start=6.48 finish=15.04
931475) easywave cpu=11 start=6.48 finish=15.04
931476) easywave cpu=4 start=6.48 finish=15.04
931477) easywave cpu=13 start=6.48 finish=15.04
931478) easywave cpu=6 start=6.48 finish=15.04
931479) easywave cpu=15 start=6.48 finish=15.04
931480) easywave cpu=1 start=6.48 finish=15.04
931481) easywave cpu=10 start=6.48 finish=15.04
931482) easywave cpu=3 start=6.48 finish=15.04
931483) easywave cpu=5 start=6.48 finish=15.04
931484) rm cpu=0 start=15.04 finish=15.07
931485) rm cpu=6 start=15.07 finish=15.07
