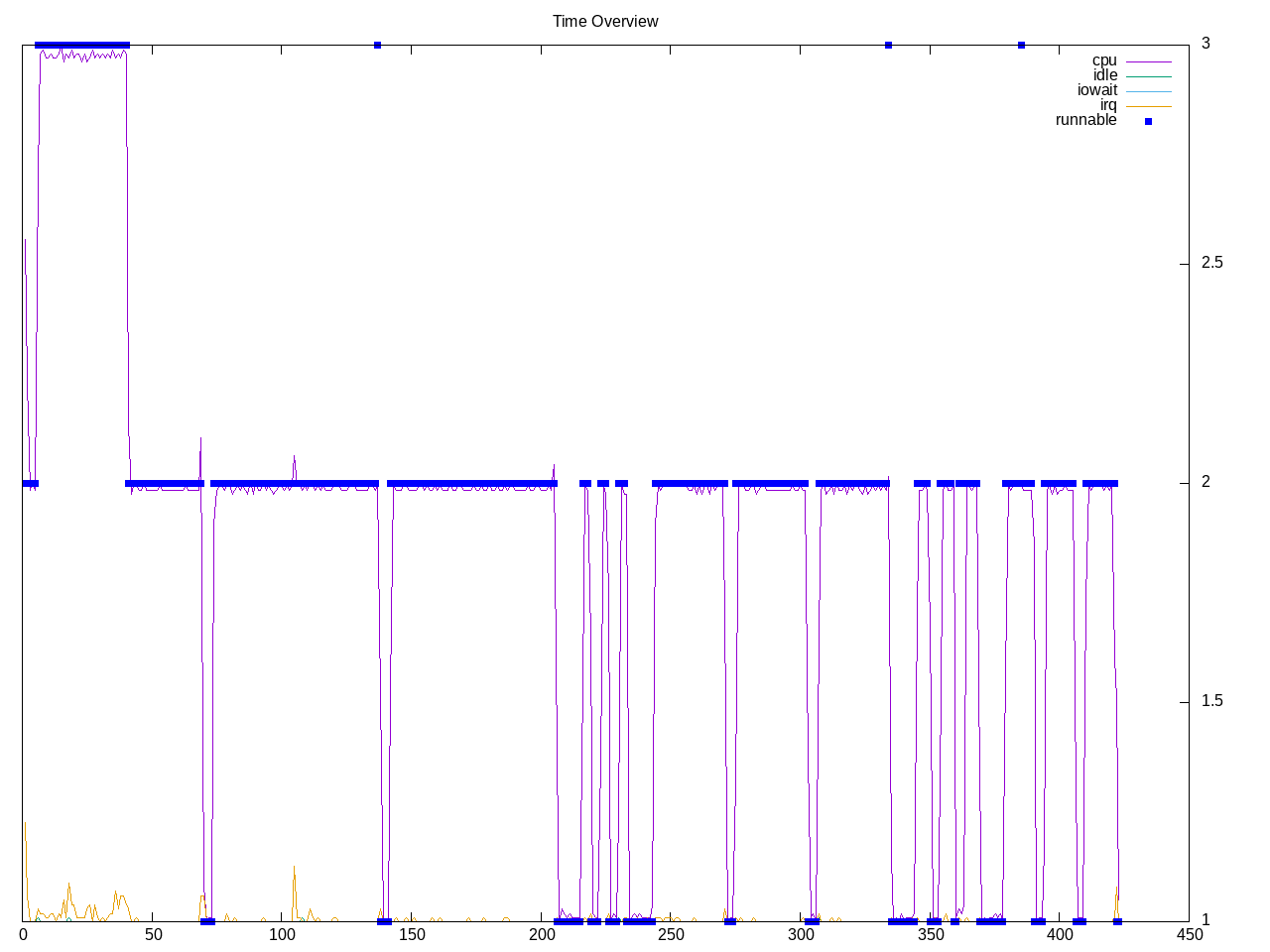

3D CAD modeler program. There are five different workloads. From the profile, these look to be single-threaded with something extra running during the first workload. The relative times also stand out with first workload taking almost as much time as the other four combined.

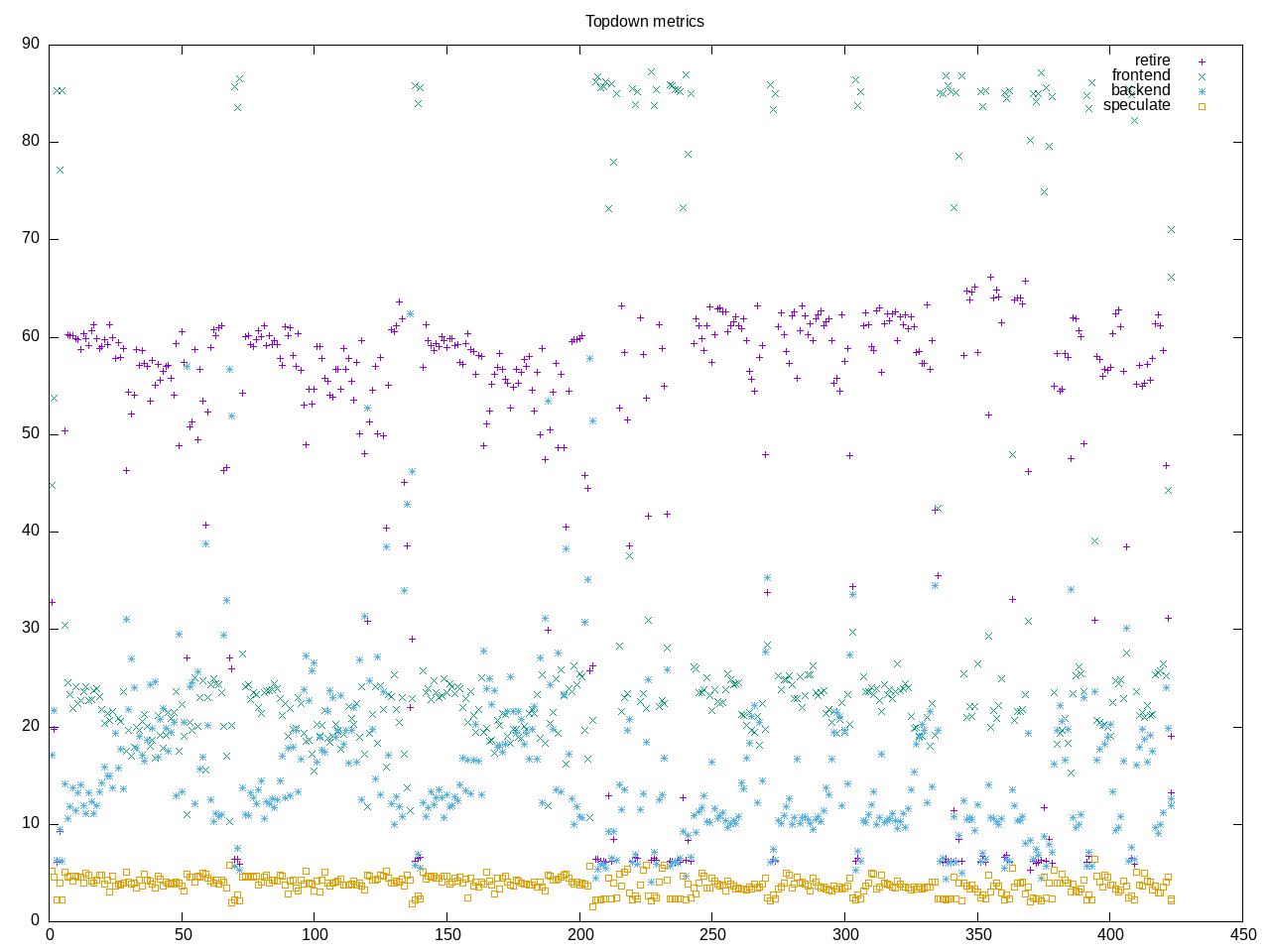

Topdown profile shows a high retirement rate and mix of backend and frontend stalls.
AMD metrics reflect a low on-core percentage, ~1/5 instructions are branches and very little floating point.
elapsed 422.749
on_cpu 0.050 # 0.80 / 16 cores
utime 332.058
stime 4.627
nvcsw 23009 # 92.58%
nivcsw 1844 # 7.42%
inblock 264 # 0.62/sec
onblock 14608 # 34.55/sec
cpu-clock 336740720119 # 336.741 seconds
task-clock 336754926269 # 336.755 seconds
page faults 1910499 # 5673.262/sec
context switches 26752 # 79.441/sec
cpu migrations 638 # 1.895/sec
major page faults 4 # 0.012/sec
minor page faults 1910495 # 5673.250/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 1031901503702 # 195.758 branches per 1000 inst
branch misses 4885209147 # 0.47% branch miss
conditional 681508801840 # 129.287 conditional branches per 1000 inst
indirect 68784371657 # 13.049 indirect branches per 1000 inst
cpu-cycles 1547029539906 # 0.23 GHz
instructions 5265953090888 # 3.40 IPC
slots 3098409161730 #
retiring 1761428833226 # 56.8% (56.9%)
-- ucode 3746874236 # 0.1%
-- fastpath 1757681958990 # 56.7%
frontend 676634274863 # 21.8% (21.8%)
-- latency 350628159138 # 11.3%
-- bandwidth 326006115725 # 10.5%
backend 535081034943 # 17.3% (17.3%)
-- cpu 77646362712 # 2.5%
-- memory 457434672231 # 14.8%
speculation 124848917485 # 4.0% ( 4.0%)
-- branch mispredict 119125690073 # 3.8%
-- pipeline restart 5723227412 # 0.2%
smt-contention 415746112 # 0.0% ( 0.0%)
cpu-cycles 1837831312838 # 0.21 GHz
instructions 6327727125019 # 3.44 IPC
instructions 2111272455778 # 5.506 l2 access per 1000 inst
l2 hit from l1 10450947730 # 12.78% l2 miss
l2 miss from l1 878626140 #
l2 hit from l2 pf 565877018 #
l3 hit from l2 pf 424006556 #
l3 miss from l2 pf 183262736 #
instructions 2111120557854 # 4.827 float per 1000 inst
float 512 89 # 0.000 AVX-512 per 1000 inst
float 256 590 # 0.000 AVX-256 per 1000 inst
float 128 10190850857 # 4.827 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 1 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 484.067
on_cpu 0.051 # 0.82 / 16 cores
utime 393.998
stime 3.122
nvcsw 8520 # 78.47%
nivcsw 2337 # 21.53%
inblock 66600 # 137.58/sec
onblock 3424 # 7.07/sec
cpu-clock 397153907639 # 397.154 seconds
task-clock 397165603053 # 397.166 seconds
page faults 1847986 # 4652.936/sec
context switches 13066 # 32.898/sec
cpu migrations 526 # 1.324/sec
major page faults 453 # 1.141/sec
minor page faults 1847533 # 4651.795/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 1031007465039 # 195.753 branches per 1000 inst
branch misses 4322959209 # 0.42% branch miss
conditional 1031007485583 # 195.753 conditional branches per 1000 inst
indirect 68768741049 # 13.057 indirect branches per 1000 inst
slots 8979723509168 #
retiring 5073544138778 # 56.5% (56.5%)
-- ucode 293115212521 # 3.3%
-- fastpath 4780428926257 # 53.2%
frontend 2583017982853 # 28.8% (28.8%)
-- latency 1148193498713 # 12.8%
-- bandwidth 1434824484140 # 16.0%
backend 738150744894 # 8.2% ( 8.2%)
-- cpu 365619503836 # 4.1%
-- memory 372531241058 # 4.1%
speculation 747395099127 # 8.3% ( 8.3%)
-- branch mispredict 669939473186 # 7.5%
-- pipeline restart 77455625941 # 0.9%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 1496122737534 # 0.19 GHz
instructions 5266572245280 # 3.52 IPC
l2 access 31350249974 # 5.953 l2 access per 1000 inst
l2 miss 7792586637 # 24.86% l2 miss
Process overview gives processes logical names like disk.
490 processes
45 openscad 330.67 3.16
15 openscad:cs0 330.63 3.16
15 opensca:disk$0 330.62 3.16
15 openscad:sh0 330.62 3.16
15 openscad:gdrv0 330.61 3.16
15 openscad:gl0 330.61 3.16
15 openscad:shlo0 330.61 3.16
68 clinfo 16.56 6.40
2 openscad:sh1 16.36 0.24
38 vulkaninfo 1.33 0.92
6 glxinfo:gdrv0 0.17 0.02
6 glxinfo:gl0 0.17 0.02
4 vulkani:disk$0 0.14 0.09
6 php 0.09 0.17
2 llvmpipe-0 0.07 0.05
2 llvmpipe-1 0.07 0.05
2 llvmpipe-10 0.07 0.05
2 llvmpipe-11 0.07 0.05
2 llvmpipe-12 0.07 0.05
2 llvmpipe-13 0.07 0.05
2 llvmpipe-14 0.07 0.05
2 llvmpipe-15 0.07 0.05
2 llvmpipe-2 0.07 0.05
2 llvmpipe-3 0.07 0.05
2 llvmpipe-4 0.07 0.05
2 llvmpipe-5 0.07 0.05
2 llvmpipe-6 0.07 0.05
2 llvmpipe-7 0.07 0.05
2 llvmpipe-8 0.07 0.05
2 llvmpipe-9 0.07 0.05
2 glxinfo 0.07 0.02
2 glxinfo:cs0 0.07 0.02
2 glxinfo:disk$0 0.07 0.02
2 glxinfo:sh0 0.07 0.02
2 glxinfo:shlo0 0.07 0.02
6 clang 0.06 0.06
3 rocminfo 0.03 0.00
1 lspci 0.00 0.02
1 ps 0.00 0.01
89 sh 0.00 0.00
12 gcc 0.00 0.00
8 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 gmain 0.00 0.00
5 phoronix-test-s 0.00 0.00
3 dconf worker 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 cc 0.00 0.00
1 date 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
47 maximum processes
The compute structure looks like a parent process opens various functional processes on different cores.
632441) openscad cpu=7 start=5.45 finish=69.37
632442) openscad cpu=11 start=5.46 finish=69.28
632444) openscad:cs0 cpu=13 start=68.59 finish=69.28
632445) opensca:disk$0 cpu=7 start=68.59 finish=69.28
632446) openscad:sh0 cpu=15 start=68.59 finish=69.28
632447) openscad:shlo0 cpu=9 start=68.59 finish=69.28
632448) openscad:gdrv0 cpu=10 start=68.60 finish=69.27
632449) openscad:gl0 cpu=2 start=68.60 finish=69.27
632453) openscad cpu=13 start=69.36 finish=69.37
