Testing cryptographic capabilities. Interesting this benchmark has one of the highest IPC combined with lowest GHZ cycles. We run this as mostly single-threaded program.

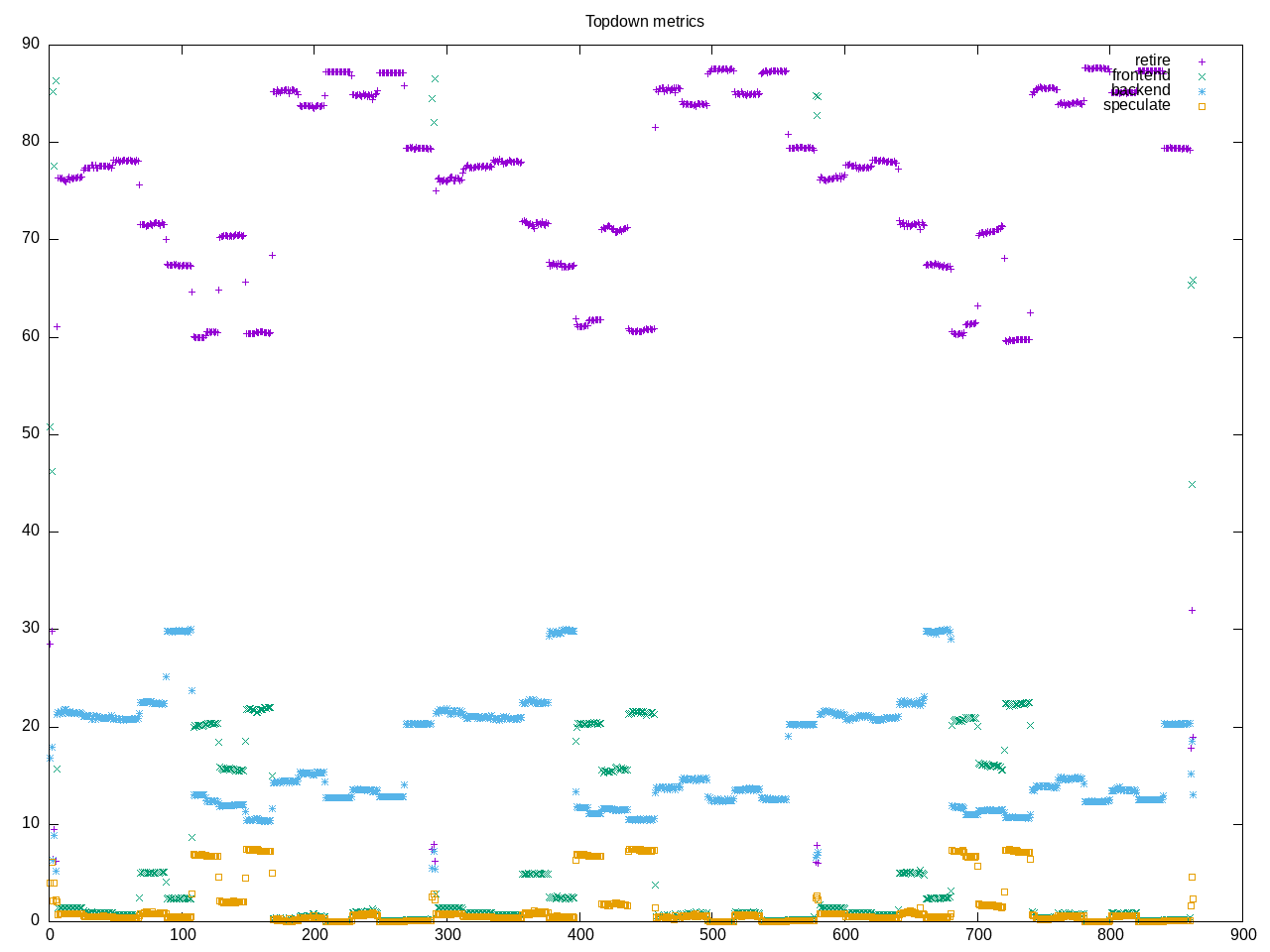

Topdown shows a very high retirement rate with most other factors lower.
AMD metrics show lowe GHz, high retiring and very little L2 access.
elapsed 860.106
on_cpu 0.061 # 0.98 / 16 cores
utime 844.940
stime 0.646
nvcsw 1962 # 29.84%
nivcsw 4614 # 70.16%
inblock 0 # 0.00/sec
onblock 12568 # 14.61/sec
cpu-clock 845698903392 # 845.699 seconds
task-clock 845707167306 # 845.707 seconds
page faults 151575 # 179.229/sec
context switches 10702 # 12.654/sec
cpu migrations 313 # 0.370/sec
major page faults 6 # 0.007/sec
minor page faults 151569 # 179.222/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 1005380749097 # 57.687 branches per 1000 inst
branch misses 3218590396 # 0.32% branch miss
conditional 761003153626 # 43.665 conditional branches per 1000 inst
indirect 19893106120 # 1.141 indirect branches per 1000 inst
cpu-cycles 11856569247607 # 0.29 GHz
instructions 52006844923450 # 4.39 IPC
slots 23736398378238 #
retiring 18087062753466 # 76.2% (76.2%)
-- ucode 1732960675 # 0.0%
-- fastpath 18085329792791 # 76.2%
frontend 1233901418406 # 5.2% ( 5.2%)
-- latency 491774013294 # 2.1%
-- bandwidth 742127405112 # 3.1%
backend 4031868070305 # 17.0% (17.0%)
-- cpu 678504143101 # 2.9%
-- memory 3353363927204 # 14.1%
speculation 382342692622 # 1.6% ( 1.6%)
-- branch mispredict 349739911068 # 1.5%
-- pipeline restart 32602781554 # 0.1%
smt-contention 1222432747 # 0.0% ( 0.0%)
cpu-cycles 3956071139036 # 0.29 GHz
instructions 17367313051789 # 4.39 IPC
instructions 5794829719732 # 0.046 l2 access per 1000 inst
l2 hit from l1 251080745 # 8.88% l2 miss
l2 miss from l1 14942217 #
l2 hit from l2 pf 8937557 #
l3 hit from l2 pf 4575407 #
l3 miss from l2 pf 4366727 #
instructions 5787535252581 # 19.144 float per 1000 inst
float 512 65 # 0.000 AVX-512 per 1000 inst
float 256 380 # 0.000 AVX-256 per 1000 inst
float 128 110794525149 # 19.144 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 0 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 856.417
on_cpu 0.061 # 0.98 / 16 cores
utime 841.238
stime 0.449
nvcsw 1849 # 33.96%
nivcsw 3595 # 66.04%
inblock 400 # 0.47/sec
onblock 1320 # 1.54/sec
cpu-clock 841746789919 # 841.747 seconds
task-clock 841752250001 # 841.752 seconds
page faults 135976 # 161.539/sec
context switches 9548 # 11.343/sec
cpu migrations 650 # 0.772/sec
major page faults 4 # 0.005/sec
minor page faults 135972 # 161.534/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 775411231955 # 53.914 branches per 1000 inst
branch misses 3650428538 # 0.47% branch miss
conditional 775411243827 # 53.914 conditional branches per 1000 inst
indirect 15218125402 # 1.058 indirect branches per 1000 inst
slots 19178946920132 #
retiring 13655180916517 # 71.2% (71.2%)
-- ucode 150995058316 # 0.8%
-- fastpath 13504185858201 # 70.4%
frontend 807824034988 # 4.2% ( 4.2%)
-- latency 303861201387 # 1.6%
-- bandwidth 503962833601 # 2.6%
backend 4897560291737 # 25.5% (25.5%)
-- cpu 4894145777817 # 25.5%
-- memory 3414513920 # 0.0%
speculation 2655398151 # 0.0% ( 0.0%)
-- branch mispredict 2533986668 # 0.0%
-- pipeline restart 121411483 # 0.0%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 3196949700141 # 0.23 GHz
instructions 14417177694105 # 4.51 IPC
l2 access 482083549 # 0.033 l2 access per 1000 inst
l2 miss 96724013 # 20.06% l2 miss
Process structure shows it all runs in process named sec-tls
348 processes
3 sec-tls 841.31 0.00
68 clinfo 16.55 6.31
38 vulkaninfo 0.96 1.33
6 glxinfo:gdrv0 0.15 0.09
4 vulkani:disk$0 0.11 0.14
6 php 0.08 0.15
2 glxinfo 0.07 0.03
2 glxinfo:cs0 0.07 0.03
2 glxinfo:disk$0 0.07 0.03
2 glxinfo:sh0 0.07 0.03
2 glxinfo:shlo0 0.07 0.03
2 llvmpipe-0 0.06 0.07
2 llvmpipe-1 0.06 0.07
2 llvmpipe-10 0.06 0.07
2 llvmpipe-11 0.06 0.07
2 llvmpipe-12 0.06 0.07
2 llvmpipe-13 0.06 0.07
2 llvmpipe-14 0.06 0.07
2 llvmpipe-15 0.06 0.07
2 llvmpipe-2 0.06 0.07
2 llvmpipe-3 0.06 0.07
2 llvmpipe-4 0.06 0.07
2 llvmpipe-5 0.06 0.07
2 llvmpipe-6 0.06 0.07
2 llvmpipe-7 0.06 0.07
2 llvmpipe-8 0.06 0.07
2 llvmpipe-9 0.06 0.07
6 clang 0.04 0.08
3 rocminfo 0.03 0.00
1 lspci 0.00 0.03
82 sh 0.00 0.00
13 gcc 0.00 0.00
8 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 gmain 0.00 0.00
5 phoronix-test-s 0.00 0.00
3 dconf worker 0.00 0.00
3 securemark 0.00 0.00
2 cc 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 date 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 ps 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
47 maximum processes
