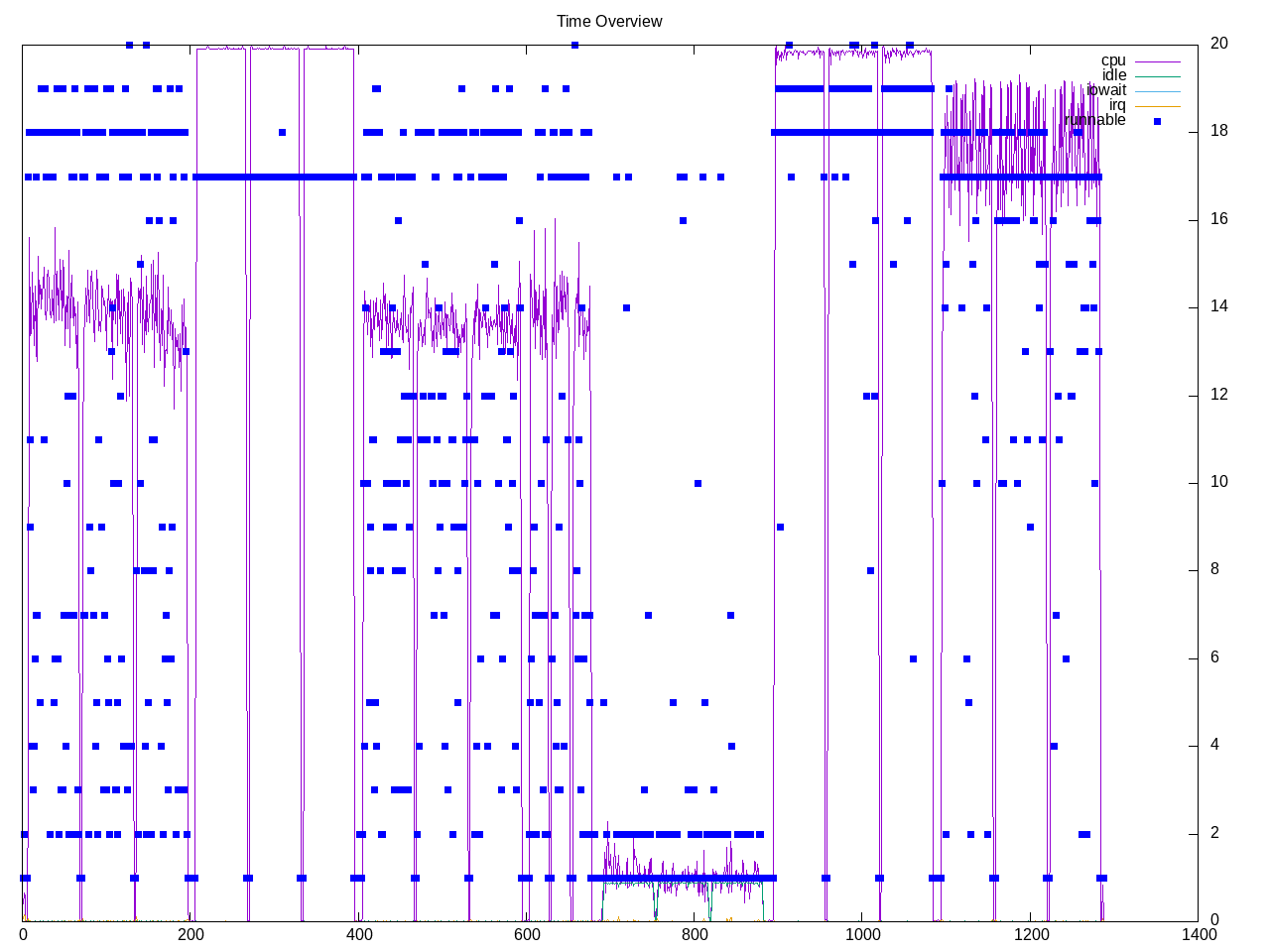

A key value storage engine. This runs with seven different workloads in combinations of reading and writing.. Also looks like a mixture of how many processes are running and overall usage of the CPU cores.

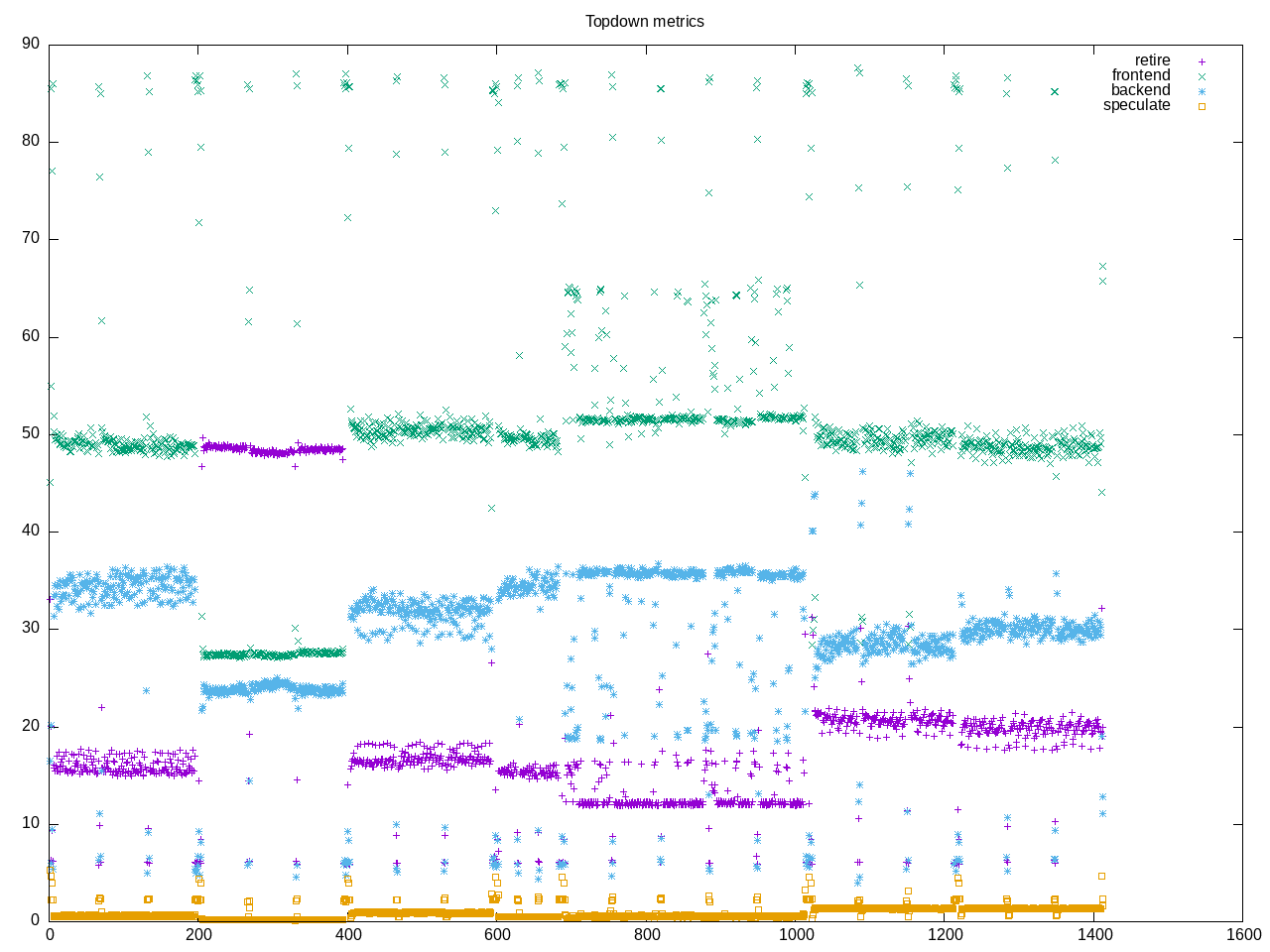

Topdown profile shows a surprising amount of frontend stalls and not as many backend stalls as I expected.
AMD metrics show now much floating point and a reasonable number of branches.
elapsed 2070.821
on_cpu 0.423 # 6.77 / 16 cores
utime 9881.316
stime 4127.971
nvcsw 138393616 # 88.21%
nivcsw 18505237 # 11.79%
inblock 224 # 0.11/sec
onblock 127042640 # 61348.93/sec
cpu-clock 13909200672659 # 13909.201 seconds
task-clock 13958994870372 # 13958.995 seconds
page faults 35140921 # 2517.439/sec
context switches 156908891 # 11240.701/sec
cpu migrations 9528475 # 682.605/sec
major page faults 22 # 0.002/sec
minor page faults 35140899 # 2517.438/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 10714480389338 # 191.064 branches per 1000 inst
branch misses 320919868482 # 3.00% branch miss
conditional 5808156968035 # 103.573 conditional branches per 1000 inst
indirect 1135687733221 # 20.252 indirect branches per 1000 inst
cpu-cycles 51740491010480 # 2.51 GHz
instructions 55743124682792 # 1.08 IPC
slots 102725447237646 #
retiring 20115152933513 # 19.6% (24.2%)
-- ucode 116943868313 # 0.1%
-- fastpath 19998209065200 # 19.5%
frontend 37532525154712 # 36.5% (45.1%)
-- latency 28895131316592 # 28.1%
-- bandwidth 8637393838120 # 8.4%
backend 24911429404191 # 24.3% (29.9%)
-- cpu 3128438115707 # 3.0%
-- memory 21782991288484 # 21.2%
speculation 717345821128 # 0.7% ( 0.9%)
-- branch mispredict 708891072216 # 0.7%
-- pipeline restart 8454748912 # 0.0%
smt-contention 19437881832850 # 18.9% ( 0.0%)
cpu-cycles 51919455128020 # 2.40 GHz
instructions 55867230617986 # 1.08 IPC
instructions 18538442010060 # 40.327 l2 access per 1000 inst
l2 hit from l1 685936510947 # 11.53% l2 miss
l2 miss from l1 47139312954 #
l2 hit from l2 pf 22599446135 #
l3 hit from l2 pf 25035223752 #
l3 miss from l2 pf 14036334289 #
instructions 18523728810796 # 25.198 float per 1000 inst
float 512 129 # 0.000 AVX-512 per 1000 inst
float 256 628 # 0.000 AVX-256 per 1000 inst
float 128 466765911840 # 25.198 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 0 # 0.000 scalar per 1000 inst
Intel metrics with lower elapsed time overall and more cores.
elapsed 1867.083
on_cpu 0.787 # 12.59 / 16 cores
utime 19333.595
stime 4180.095
nvcsw 20487307 # 38.34%
nivcsw 32952605 # 61.66%
inblock 25896 # 13.87/sec
onblock 150144056 # 80416.39/sec
cpu-clock 23502613686774 # 23502.614 seconds
task-clock 23508495529544 # 23508.496 seconds
page faults 40269628 # 1712.982/sec
context switches 53448978 # 2273.603/sec
cpu migrations 1064630 # 45.287/sec
major page faults 171 # 0.007/sec
minor page faults 40269457 # 1712.975/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 14771616888164 # 181.793 branches per 1000 inst
branch misses 61993896497 # 0.42% branch miss
conditional 14771616978244 # 181.793 conditional branches per 1000 inst
indirect 5085829414981 # 62.591 indirect branches per 1000 inst
slots 125964273862484 #
retiring 51099357052715 # 40.6% (40.6%)
-- ucode 6050258115125 # 4.8%
-- fastpath 45049098937590 # 35.8%
frontend 41642723677884 # 33.1% (33.1%)
-- latency 17491249620450 # 13.9%
-- bandwidth 24151474057434 # 19.2%
backend 28925817997092 # 23.0% (23.0%)
-- cpu 18472992005227 # 14.7%
-- memory 10452825991865 # 8.3%
speculation 4353259119865 # 3.5% ( 3.5%)
-- branch mispredict 3808100269661 # 3.0%
-- pipeline restart 545158850204 # 0.4%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 79398869975356 # 2.33 GHz
instructions 96444141910483 # 1.21 IPC
l2 access 2579729494934 # 51.631 l2 access per 1000 inst
l2 miss 450249142737 # 17.45% l2 miss
Process overview, looks like we lost track of some.
2184 processes
1522 db_bench 327262.01 141787.39
168 speedb:low 78551.12 26881.76
21 speedb:high 9818.89 3360.24
68 clinfo 17.85 5.99
38 vulkaninfo 0.74 1.51
6 glxinfo:gdrv0 0.12 0.07
6 php 0.10 0.28
4 vulkani:disk$0 0.08 0.15
2 glxinfo 0.06 0.03
2 glxinfo:cs0 0.06 0.03
2 glxinfo:disk$0 0.06 0.03
2 glxinfo:sh0 0.06 0.03
2 glxinfo:shlo0 0.06 0.03
6 clang 0.04 0.08
2 llvmpipe-0 0.04 0.08
2 llvmpipe-1 0.04 0.08
2 llvmpipe-10 0.04 0.08
2 llvmpipe-11 0.04 0.08
2 llvmpipe-12 0.04 0.08
2 llvmpipe-13 0.04 0.08
2 llvmpipe-14 0.04 0.08
2 llvmpipe-15 0.04 0.08
2 llvmpipe-2 0.04 0.08
2 llvmpipe-3 0.04 0.08
2 llvmpipe-4 0.04 0.08
2 llvmpipe-5 0.04 0.08
2 llvmpipe-6 0.04 0.08
2 llvmpipe-7 0.04 0.08
2 llvmpipe-8 0.04 0.08
2 llvmpipe-9 0.04 0.08
42 rm 0.00 0.21
3 rocminfo 0.00 0.03
1 lspci 0.00 0.02
1 ps 0.00 0.01
94 sh 0.00 0.00
21 speedb 0.00 0.00
13 gcc 0.00 0.00
10 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 phoronix-test-s 0.00 0.00
4 gmain 0.00 0.00
2 cc 0.00 0.00
2 dconf worker 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 date 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
56 processes running
103 maximum processes
Not all of it, but shows many nested invocations of db_bench
3671795) speedb cpu=0 start=5.57 finish=65.87
3671796) rm cpu=1 start=5.58 finish=5.58
3671797) db_bench cpu=12 start=5.58 finish=65.85
3671798) db_bench cpu=5 start=5.58 finish=5.59
3671799) speedb:low cpu=5 start=5.58 finish=65.84
3671800) speedb:low cpu=7 start=5.58 finish=65.84
3671801) speedb:low cpu=11 start=5.59 finish=65.84
3671802) speedb:low cpu=2 start=5.59 finish=65.84
3671803) speedb:low cpu=0 start=5.59 finish=65.84
3671804) speedb:low cpu=6 start=5.59 finish=65.84
3671805) speedb:low cpu=13 start=5.59 finish=65.84
3671806) speedb:low cpu=1 start=5.59 finish=65.84
3671807) speedb:high cpu=2 start=5.59 finish=65.85
3671808) db_bench cpu=11 start=5.59 finish=65.84
3671809) db_bench cpu=10 start=5.59 finish=5.69
3671810) db_bench cpu=4 start=5.68 finish=5.69
3671811) db_bench cpu=9 start=5.68 finish=5.68
3671812) db_bench cpu=11 start=5.68 finish=5.68
3671813) db_bench cpu=15 start=5.68 finish=5.68
3671814) db_bench cpu=5 start=5.68 finish=5.68
3671815) db_bench cpu=10 start=5.68 finish=5.68
3671816) db_bench cpu=4 start=5.68 finish=5.68
3671817) db_bench cpu=11 start=5.68 finish=5.68
3671818) db_bench cpu=3 start=5.68 finish=5.68
3671819) db_bench cpu=0 start=5.68 finish=5.68
3671820) db_bench cpu=14 start=5.68 finish=5.68
3671821) db_bench cpu=10 start=5.68 finish=5.68
3671822) ?? cpu=0 start=5.68 finish=0.00
3671823) db_bench cpu=14 start=5.68 finish=5.68
3671824) db_bench cpu=10 start=5.68 finish=5.68
3671825) ?? cpu=0 start=5.68 finish=0.00
3671826) db_bench cpu=14 start=5.69 finish=5.69
3671827) db_bench cpu=12 start=5.71 finish=5.81
3671828) db_bench cpu=4 start=5.80 finish=6.57
3671829) db_bench cpu=2 start=5.80 finish=5.80
3671830) db_bench cpu=14 start=5.80 finish=5.80
3671831) db_bench cpu=11 start=5.80 finish=5.80
3671832) db_bench cpu=5 start=5.80 finish=5.80
3671833) db_bench cpu=12 start=5.80 finish=5.80
3671834) db_bench cpu=1 start=5.80 finish=5.80
3671835) db_bench cpu=11 start=5.80 finish=5.80
3671836) ?? cpu=0 start=5.80 finish=0.00
3671837) db_bench cpu=14 start=5.80 finish=5.80
3671838) db_bench cpu=11 start=5.80 finish=5.80
3671839) db_bench cpu=0 start=5.80 finish=5.80
3671840) db_bench cpu=7 start=5.80 finish=5.80
3671841) db_bench cpu=0 start=5.80 finish=5.80
3671842) db_bench cpu=0 start=5.80 finish=5.80
3671843) db_bench cpu=12 start=5.81 finish=5.81
3671844) db_bench cpu=6 start=5.81 finish=65.82
3671845) db_bench cpu=6 start=5.81 finish=65.82
3671861) db_bench cpu=13 start=6.57 finish=7.30
3671862) db_bench cpu=14 start=7.30 finish=8.06
3671870) db_bench cpu=5 start=13.35 finish=14.07
3671891) db_bench cpu=5 start=29.63 finish=30.38
3671904) db_bench cpu=5 start=39.66 finish=40.50
3671917) db_bench cpu=15 start=49.87 finish=50.67
3671846) db_bench cpu=10 start=5.81 finish=65.82
3671865) db_bench cpu=5 start=9.58 finish=10.30
3671869) db_bench cpu=8 start=12.60 finish=13.35
3671873) db_bench cpu=11 start=15.65 finish=16.45
3671898) db_bench cpu=5 start=35.10 finish=35.81
3671901) db_bench cpu=12 start=37.40 finish=38.23
3671919) db_bench cpu=5 start=51.38 finish=52.08
3671935) db_bench cpu=8 start=63.77 finish=64.50
3671847) db_bench cpu=9 start=5.81 finish=65.82
3671866) db_bench cpu=9 start=10.30 finish=11.04
3671908) db_bench cpu=5 start=42.80 finish=43.64
3671909) db_bench cpu=5 start=43.64 finish=44.45
3671848) db_bench cpu=8 start=5.81 finish=65.82
3671880) db_bench cpu=10 start=20.93 finish=21.79
3671895) db_bench cpu=4 start=32.75 finish=33.48
3671896) db_bench cpu=12 start=33.48 finish=34.31
3671926) db_bench cpu=10 start=56.84 finish=57.57
3671933) db_bench cpu=1 start=62.20 finish=63.03
3671849) db_bench cpu=5 start=5.81 finish=65.82
3671874) db_bench cpu=4 start=16.45 finish=17.14
3671889) db_bench cpu=8 start=28.09 finish=28.87
3671903) db_bench cpu=5 start=38.94 finish=39.66
3671916) db_bench cpu=6 start=49.02 finish=49.87
