TSCP is a chess program with a built-in benchmark. The test finishes quickly with a message of “The test run ended quickly”, though I get a result. The overview profile suggests a single-threaded test.

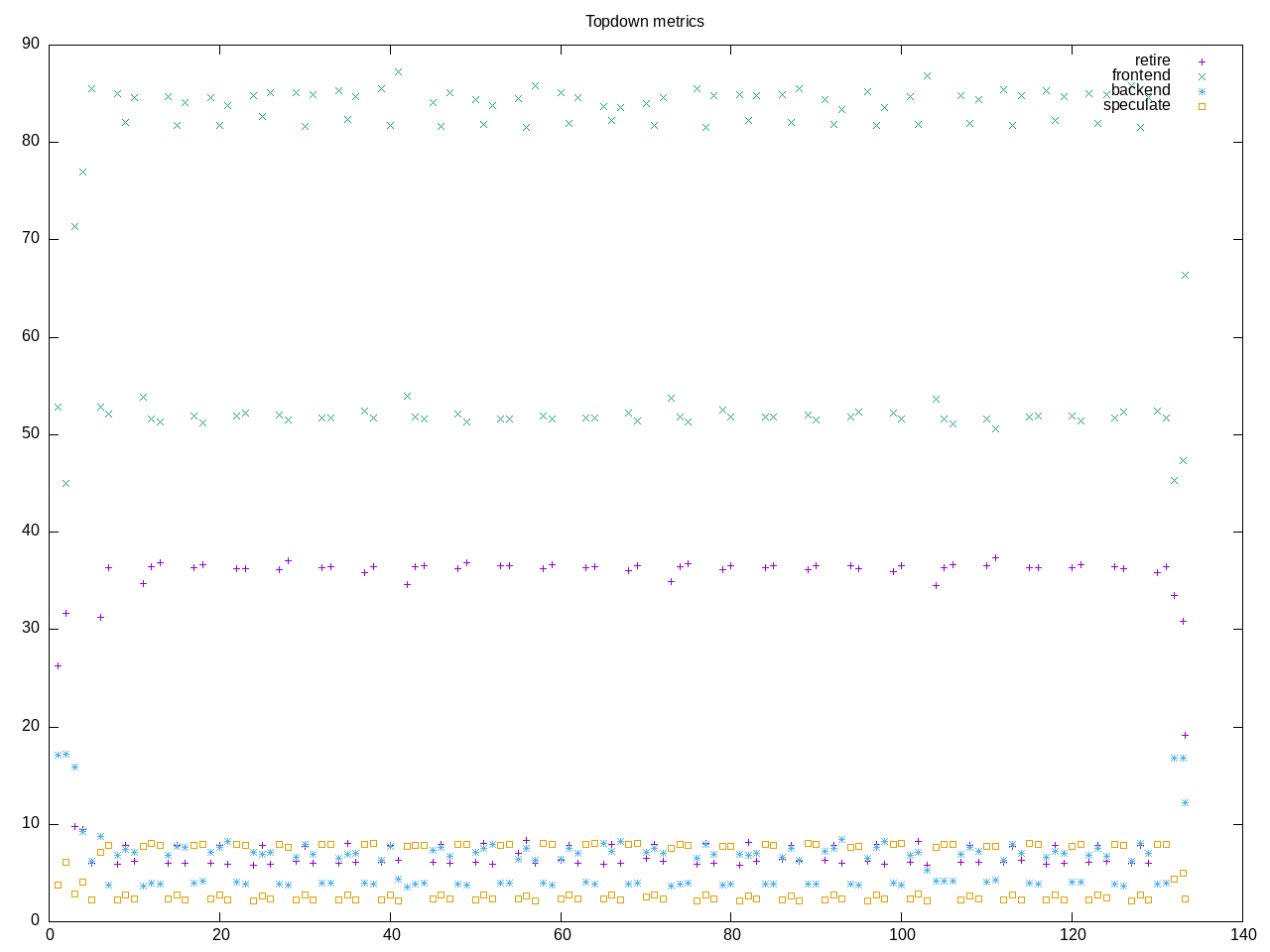

AMD overview metrics give a very high front-end time and low backend time.
AMD metrics show very low on cpu
elapsed 118.511
on_cpu 0.015 # 0.23 / 16 cores
utime 26.700
stime 0.844
nvcsw 2159 # 87.20%
nivcsw 317 # 12.80%
inblock 0 # 0.00/sec
onblock 13184 # 111.25/sec
cpu-clock 27574979832 # 27.575 seconds
task-clock 27578874617 # 27.579 seconds
page faults 158447 # 5745.231/sec
context switches 2858 # 103.630/sec
cpu migrations 272 # 9.863/sec
major page faults 2 # 0.073/sec
minor page faults 158445 # 5745.158/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 55872935462 # 256.869 branches per 1000 inst
branch misses 1120828259 # 2.01% branch miss
conditional 47063990959 # 216.371 conditional branches per 1000 inst
indirect 913630146 # 4.200 indirect branches per 1000 inst
cpu-cycles 91470778439 # 0.05 GHz
instructions 216053507665 # 2.36 IPC
slots 185224426386 #
retiring 66576281741 # 35.9% (35.9%)
-- ucode 9666593 # 0.0%
-- fastpath 66566615148 # 35.9%
frontend 95850668779 # 51.7% (51.8%)
-- latency 49922398968 # 27.0%
-- bandwidth 45928269811 # 24.8%
backend 8590624945 # 4.6% ( 4.6%)
-- cpu 2725229944 # 1.5%
-- memory 5865395001 # 3.2%
speculation 14186968488 # 7.7% ( 7.7%)
-- branch mispredict 14119307225 # 7.6%
-- pipeline restart 67661263 # 0.0%
smt-contention 19657921 # 0.0% ( 0.0%)
cpu-cycles 87475693531 # 0.05 GHz
instructions 206381694938 # 2.36 IPC
instructions 69295372718 # 1.713 l2 access per 1000 inst
l2 hit from l1 102261462 # 18.56% l2 miss
l2 miss from l1 13057356 #
l2 hit from l2 pf 7473716 #
l3 hit from l2 pf 4734336 #
l3 miss from l2 pf 4235457 #
instructions 69338791816 # 18.594 float per 1000 inst
float 512 84 # 0.000 AVX-512 per 1000 inst
float 256 576 # 0.000 AVX-256 per 1000 inst
float 128 1289262058 # 18.594 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 0 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 28.989
on_cpu 0.014 # 0.23 / 16 cores
utime 6.322
stime 0.389
nvcsw 1866 # 92.97%
nivcsw 141 # 7.03%
inblock 952 # 32.84/sec
onblock 1352 # 46.64/sec
cpu-clock 6721651646 # 6.722 seconds
task-clock 6724102667 # 6.724 seconds
page faults 136035 # 20230.952/sec
context switches 1980 # 294.463/sec
cpu migrations 272 # 40.451/sec
major page faults 3 # 0.446/sec
minor page faults 136032 # 20230.506/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 13817467099 # 250.477 branches per 1000 inst
branch misses 316263552 # 2.29% branch miss
conditional 13817479131 # 250.477 conditional branches per 1000 inst
indirect 247069022 # 4.479 indirect branches per 1000 inst
slots 144959669978 #
retiring 47446242084 # 32.7% (32.7%)
-- ucode 2647087903 # 1.8%
-- fastpath 44799154181 # 30.9%
frontend 59211447837 # 40.8% (40.8%)
-- latency 25103733008 # 17.3%
-- bandwidth 34107714829 # 23.5%
backend 10466218521 # 7.2% ( 7.2%)
-- cpu 7038780927 # 4.9%
-- memory 3427437594 # 2.4%
speculation 27964469921 # 19.3% (19.3%)
-- branch mispredict 27603456044 # 19.0%
-- pipeline restart 361013877 # 0.2%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 24326027173 # 0.05 GHz
instructions 55091072654 # 2.26 IPC
l2 access 257226497 # 4.673 l2 access per 1000 inst
l2 miss 81269382 # 31.59% l2 miss
Process overview
388 processes
46 tscp 26.59 0.00
68 clinfo 18.50 7.34
38 vulkaninfo 0.95 1.33
6 glxinfo:gdrv0 0.22 0.03
4 vulkani:disk$0 0.10 0.14
2 glxinfo 0.10 0.01
2 glxinfo:cs0 0.10 0.01
2 glxinfo:disk$0 0.10 0.01
2 glxinfo:sh0 0.10 0.01
2 glxinfo:shlo0 0.10 0.01
6 php 0.07 0.13
2 llvmpipe-0 0.05 0.07
2 llvmpipe-1 0.05 0.07
2 llvmpipe-10 0.05 0.07
2 llvmpipe-11 0.05 0.07
2 llvmpipe-12 0.05 0.07
2 llvmpipe-13 0.05 0.07
2 llvmpipe-14 0.05 0.07
2 llvmpipe-15 0.05 0.07
2 llvmpipe-2 0.05 0.07
2 llvmpipe-3 0.05 0.07
2 llvmpipe-4 0.05 0.07
2 llvmpipe-5 0.05 0.07
2 llvmpipe-6 0.05 0.07
2 llvmpipe-7 0.05 0.07
2 llvmpipe-8 0.05 0.07
2 llvmpipe-9 0.05 0.07
6 clang 0.04 0.08
3 rocminfo 0.03 0.00
1 lspci 0.01 0.02
82 sh 0.00 0.00
13 gcc 0.00 0.00
13 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 phoronix-test-s 0.00 0.00
2 cc 0.00 0.00
2 gmain 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 date 0.00 0.00
1 dconf worker 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 ps 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
47 maximum processes
Process structure
229134) tscp cpu=7 start=5.83 finish=6.96
229135) tscp cpu=9 start=5.83 finish=6.96
229136) tscp cpu=13 start=10.97 finish=12.14
229137) tscp cpu=6 start=10.97 finish=12.13
229140) tscp cpu=13 start=16.14 finish=17.31
229141) tscp cpu=6 start=16.14 finish=17.31
229142) tscp cpu=13 start=21.31 finish=22.48
229143) tscp cpu=14 start=21.32 finish=22.48
229144) tscp cpu=7 start=26.48 finish=27.65
229145) tscp cpu=0 start=26.49 finish=27.65
229146) tscp cpu=7 start=31.66 finish=32.82
229147) tscp cpu=8 start=31.66 finish=32.82
229148) tscp cpu=0 start=36.83 finish=38.00
229149) tscp cpu=10 start=36.83 finish=38.00
229150) tscp cpu=15 start=42.00 finish=43.17
229151) tscp cpu=8 start=42.00 finish=43.17
229152) tscp cpu=7 start=47.17 finish=48.34
229153) tscp cpu=8 start=47.18 finish=48.34
229154) tscp cpu=15 start=52.35 finish=53.52
229155) tscp cpu=0 start=52.35 finish=53.52
229156) tscp cpu=15 start=57.52 finish=58.69
229157) tscp cpu=0 start=57.52 finish=58.69
229158) tscp cpu=7 start=62.69 finish=63.86
229159) tscp cpu=0 start=62.69 finish=63.86
229160) tscp cpu=7 start=67.86 finish=69.03
229161) tscp cpu=8 start=67.87 finish=69.03
229162) tscp cpu=15 start=73.03 finish=74.20
229163) tscp cpu=0 start=73.03 finish=74.19
229164) tscp cpu=7 start=78.20 finish=79.37
229165) tscp cpu=0 start=78.20 finish=79.37
229166) tscp cpu=15 start=83.37 finish=84.54
229167) tscp cpu=0 start=83.38 finish=84.54
229168) tscp cpu=15 start=88.54 finish=89.70
229169) tscp cpu=0 start=88.54 finish=89.70
229170) tscp cpu=7 start=93.71 finish=94.87
229171) tscp cpu=8 start=93.71 finish=94.87
229172) tscp cpu=15 start=98.88 finish=100.05
229173) tscp cpu=8 start=98.88 finish=100.05
229174) tscp cpu=15 start=104.05 finish=105.22
229175) tscp cpu=0 start=104.05 finish=105.22
229176) tscp cpu=15 start=109.22 finish=110.39
229177) tscp cpu=0 start=109.23 finish=110.39
229179) tscp cpu=15 start=114.39 finish=115.56
229180) tscp cpu=0 start=114.40 finish=115.56
229181) tscp cpu=15 start=119.57 finish=120.73
229182) tscp cpu=0 start=119.57 finish=120.73
