v-ray is the Chaos group rendering engine with public benchmark. To install one needs to download from Chaos Group web page. Unfortunately the version used by Phoronix 5.02.00 had a minor bugfix 5.02.01 which changed the checksums. I hacked the checksum values in my .phoronix-test-suite/test-profiles directory and this let me install and run the test.

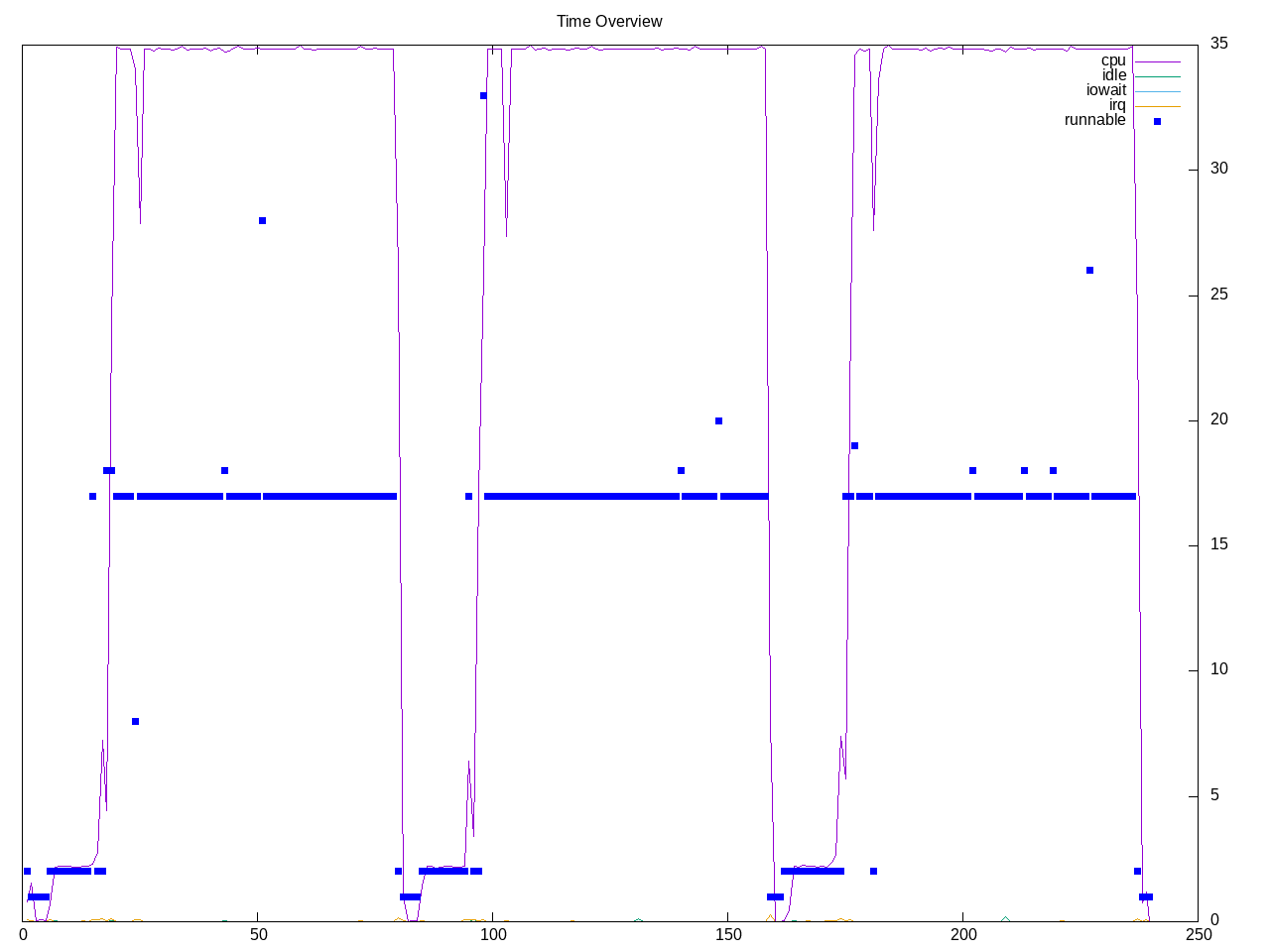

Profile shows steady running on all cores.
Topdown profile shows backend stalls (mostly memory) and then frontend stalls (mostly latency) limiting the retirement.
AMD metrics shows a lot of floating point code and some branches resulting in branch missprediction.
elapsed 240.446
on_cpu 0.775 # 12.40 / 16 cores
utime 2958.124
stime 23.523
nvcsw 73893 # 29.17%
nivcsw 179414 # 70.83%
inblock 0 # 0.00/sec
onblock 12204360 # 50757.08/sec
cpu-clock 2981797004835 # 2981.797 seconds
task-clock 2981855929298 # 2981.856 seconds
page faults 8018975 # 2689.256/sec
context switches 254295 # 85.281/sec
cpu migrations 3230 # 1.083/sec
major page faults 3 # 0.001/sec
minor page faults 8018969 # 2689.254/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 1240663196013 # 102.473 branches per 1000 inst
branch misses 46858371435 # 3.78% branch miss
conditional 866012315229 # 71.528 conditional branches per 1000 inst
indirect 98302270788 # 8.119 indirect branches per 1000 inst
cpu-cycles 11741461358098 # 3.06 GHz
instructions 12002204819500 # 1.02 IPC
slots 23489891948940 #
retiring 4224994794695 # 18.0% (23.5%)
-- ucode 39023790520 # 0.2%
-- fastpath 4185971004175 # 17.8%
frontend 5001302023749 # 21.3% (27.9%)
-- latency 3522680512920 # 15.0%
-- bandwidth 1478621510829 # 6.3%
backend 7731954855484 # 32.9% (43.1%)
-- cpu 2300272202419 # 9.8%
-- memory 5431682653065 # 23.1%
speculation 995400357444 # 4.2% ( 5.5%)
-- branch mispredict 986066899756 # 4.2%
-- pipeline restart 9333457688 # 0.0%
smt-contention 5536218071437 # 23.6% ( 0.0%)
cpu-cycles 11736222564221 # 3.05 GHz
instructions 12021527824520 # 1.02 IPC
instructions 4006462311125 # 81.869 l2 access per 1000 inst
l2 hit from l1 306136753048 # 8.88% l2 miss
l2 miss from l1 18065357561 #
l2 hit from l2 pf 10802329170 #
l3 hit from l2 pf 7784023213 #
l3 miss from l2 pf 3283427689 #
instructions 4007806722700 # 481.211 float per 1000 inst
float 512 62 # 0.000 AVX-512 per 1000 inst
float 256 4700 # 0.000 AVX-256 per 1000 inst
float 128 1928599665618 # 481.211 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 202 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 321.096
on_cpu 0.768 # 12.29 / 16 cores
utime 3926.214
stime 20.940
nvcsw 99040 # 37.54%
nivcsw 164793 # 62.46%
inblock 5344 # 16.64/sec
onblock 16257272 # 50630.53/sec
cpu-clock 3946955640486 # 3946.956 seconds
task-clock 3947017363922 # 3947.017 seconds
page faults 10268290 # 2601.531/sec
context switches 265213 # 67.193/sec
cpu migrations 6421 # 1.627/sec
major page faults 58 # 0.015/sec
minor page faults 10268228 # 2601.516/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 1281877578592 # 102.237 branches per 1000 inst
branch misses 52044004696 # 4.06% branch miss
conditional 1281877606112 # 102.237 conditional branches per 1000 inst
indirect 393608537417 # 31.392 indirect branches per 1000 inst
slots 15026480850560 #
retiring 5516544589005 # 36.7% (36.7%)
-- ucode 384143403111 # 2.6%
-- fastpath 5132401185894 # 34.2%
frontend 4235587099594 # 28.2% (28.2%)
-- latency 2363190423288 # 15.7%
-- bandwidth 1872396676306 # 12.5%
backend 2677291439162 # 17.8% (17.8%)
-- cpu 1179389378267 # 7.8%
-- memory 1497902060895 # 10.0%
speculation 2523117585235 # 16.8% (16.8%)
-- branch mispredict 2481027503040 # 16.5%
-- pipeline restart 42090082195 # 0.3%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 8758348321447 # 2.27 GHz
instructions 10088899974653 # 1.15 IPC
l2 access 367718405402 # 67.355 l2 access per 1000 inst
l2 miss 49343578092 # 13.42% l2 miss
Process overview shows an interesting blend of processes.
708 processes
3 ImageAnalysisTh 2942.77 8.71
3 VFBC_ImageUpdat 2942.77 8.71
3 VFBC_PostEffect 2942.77 8.71
3 ghc_ticker 2942.76 8.70
68 clinfo 16.52 6.27
6 installer.bin 8.64 7.13
3 vray-benchmark- 5.84 5.66
38 vulkaninfo 0.77 1.22
6 glxinfo:gdrv0 0.12 0.11
4 vulkani:disk$0 0.09 0.14
6 php 0.07 0.07
2 glxinfo 0.06 0.04
2 glxinfo:cs0 0.06 0.04
2 glxinfo:disk$0 0.06 0.04
2 glxinfo:sh0 0.06 0.04
2 glxinfo:shlo0 0.06 0.04
2 llvmpipe-0 0.05 0.08
2 llvmpipe-1 0.05 0.08
2 llvmpipe-10 0.05 0.08
2 llvmpipe-11 0.05 0.08
2 llvmpipe-12 0.05 0.08
2 llvmpipe-13 0.05 0.08
2 llvmpipe-14 0.05 0.08
2 llvmpipe-15 0.05 0.08
2 llvmpipe-2 0.05 0.08
2 llvmpipe-3 0.05 0.08
2 llvmpipe-4 0.05 0.08
2 llvmpipe-5 0.05 0.08
2 llvmpipe-6 0.05 0.08
2 llvmpipe-7 0.05 0.08
2 llvmpipe-8 0.05 0.08
2 llvmpipe-9 0.05 0.08
6 clang 0.05 0.07
3 rocminfo 0.03 0.00
3 VFB History Dat 0.01 0.00
3 VFB Image Loadi 0.01 0.00
105 V-Ray Benchma:w 0.00 102996.54
63 V-Ray Benchmark 0.00 61798.06
45 CommitEmbreeT 0 0.00 44141.55
6 VRay 0 0.00 5885.54
6 VRay 1 0.00 5885.54
6 VRay 10 0.00 5885.54
6 VRay 11 0.00 5885.54
6 VRay 12 0.00 5885.54
6 VRay 13 0.00 5885.54
6 VRay 14 0.00 5885.54
6 VRay 2 0.00 5885.54
6 VRay 3 0.00 5885.54
6 VRay 4 0.00 5885.54
6 VRay 5 0.00 5885.54
6 VRay 6 0.00 5885.54
6 VRay 7 0.00 5885.54
6 VRay 8 0.00 5885.54
6 VRay 9 0.00 5885.54
3 RenderProgre 15 0.00 2942.77
3 VRay 15 0.00 2942.77
1 CNcworker 2a96f 0.00 981.02
1 CNcworker 3e6ff 0.00 981.01
1 CNcworker 492bf 0.00 980.74
10 ps 0.00 0.04
1 lspci 0.00 0.02
93 sh 0.00 0.00
12 gcc 0.00 0.00
9 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
6 v-ray 0.00 0.00
5 phoronix-test-s 0.00 0.00
4 gmain 0.00 0.00
3 dconf worker 0.00 0.00
3 getconf 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 cc 0.00 0.00
1 date 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 ip 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 qdbus 0.00 0.00
1 readlink 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
122 maximum processes
Computation blocks
2901901) v-ray cpu=6 start=5.84 finish=80.47
2901902) v-ray cpu=13 start=5.84 finish=5.84
2901903) vray-benchmark- cpu=0 start=5.84 finish=80.47
2901904) installer.bin cpu=2 start=9.51 finish=9.53
2901905) installer.bin cpu=2 start=9.54 finish=80.31
2901906) sh cpu=11 start=13.24 finish=13.24
2901907) getconf cpu=12 start=13.24 finish=13.24
2901908) sh cpu=13 start=13.24 finish=13.25
2901909) ps cpu=14 start=13.24 finish=13.25
2901910) sh cpu=4 start=13.26 finish=13.27
2901911) ps cpu=7 start=13.26 finish=13.27
2901912) sh cpu=6 start=13.27 finish=13.28
2901913) ps cpu=7 start=13.27 finish=13.28
2901915) V-Ray Benchmark cpu=17 start=14.66 finish=80.08
2901916) ghc_ticker cpu=3 start=14.67 finish=80.02
2901917) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.02
2901934) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901947) V-Ray Benchma:w cpu=-1 start=14.72 finish=80.01
2901970) V-Ray Benchma:w cpu=-1 start=14.97 finish=80.01
2901918) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.02
2901936) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2902025) V-Ray Benchma:w cpu=-1 start=26.98 finish=80.01
2901919) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.02
2901935) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901920) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.02
2901937) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901921) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.02
2901938) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901922) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.02
2901943) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901923) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901942) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901924) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901945) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901925) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901944) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901926) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901939) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901927) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901940) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901928) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901941) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901929) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901946) V-Ray Benchma:w cpu=-1 start=14.72 finish=80.01
2901930) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901948) V-Ray Benchma:w cpu=-1 start=14.72 finish=80.01
2901931) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901949) V-Ray Benchma:w cpu=-1 start=14.72 finish=80.01
2901932) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901933) V-Ray Benchma:w cpu=-1 start=14.67 finish=80.01
2901950) CNcworker 3e6ff cpu=-1 start=14.72 finish=80.08
2901951) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901952) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901953) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901954) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901955) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901956) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901957) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901958) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901959) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901960) V-Ray Benchmark cpu=-1 start=14.94 finish=80.02
2901961) V-Ray Benchmark cpu=-1 start=14.95 finish=80.02
2901962) V-Ray Benchmark cpu=-1 start=14.95 finish=80.02
2901963) V-Ray Benchmark cpu=-1 start=14.95 finish=80.02
2901964) V-Ray Benchmark cpu=-1 start=14.95 finish=80.02
2901965) V-Ray Benchmark cpu=-1 start=14.95 finish=80.02
2901966) V-Ray Benchmark cpu=-1 start=14.95 finish=80.02
2901967) V-Ray Benchmark cpu=-1 start=14.95 finish=80.08
2901968) V-Ray Benchmark cpu=-1 start=14.95 finish=80.08
2901969) V-Ray Benchmark cpu=-1 start=14.95 finish=80.08
2901971) V-Ray Benchmark cpu=-1 start=16.41 finish=79.98
2901972) VFB Image Loadi cpu=0 start=16.41 finish=80.08
2901973) VFB History Dat cpu=0 start=16.41 finish=80.08
2901974) VFBC_ImageUpdat cpu=4 start=16.41 finish=80.08
2901975) VFBC_PostEffect cpu=6 start=16.41 finish=80.08
2901976) ImageAnalysisTh cpu=7 start=16.41 finish=80.08
2901977) VRay 0 cpu=-1 start=16.44 finish=80.08
2901993) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.08
2901994) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.08
2901997) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902000) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902003) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902001) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2901996) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2901999) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902005) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902006) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902002) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2901995) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.08
2901998) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902007) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2902004) CommitEmbreeT 0 cpu=-1 start=18.13 finish=80.07
2901978) VRay 1 cpu=-1 start=16.44 finish=80.08
2901979) VRay 2 cpu=-1 start=16.44 finish=80.08
2901980) VRay 3 cpu=-1 start=16.44 finish=80.08
2902008) VRay 0 cpu=-1 start=18.75 finish=80.07
2902009) VRay 1 cpu=-1 start=18.75 finish=80.07
2902010) VRay 2 cpu=-1 start=18.75 finish=80.07
2902011) VRay 3 cpu=-1 start=18.75 finish=80.07
2902012) VRay 4 cpu=-1 start=18.75 finish=80.07
2902013) VRay 5 cpu=-1 start=18.75 finish=80.07
2902014) VRay 6 cpu=-1 start=18.75 finish=80.07
2902015) VRay 7 cpu=-1 start=18.75 finish=80.07
2902016) VRay 8 cpu=-1 start=18.75 finish=80.07
2902017) VRay 9 cpu=-1 start=18.75 finish=80.07
2902018) VRay 10 cpu=-1 start=18.75 finish=80.07
2902019) VRay 11 cpu=-1 start=18.75 finish=80.07
2901981) VRay 4 cpu=-1 start=16.44 finish=80.08
2901982) VRay 5 cpu=-1 start=16.44 finish=80.08
2901983) VRay 6 cpu=-1 start=16.45 finish=80.08
2901984) VRay 7 cpu=-1 start=16.45 finish=80.08
2901985) VRay 8 cpu=-1 start=16.45 finish=80.08
2901986) VRay 9 cpu=-1 start=16.45 finish=80.08
2901987) VRay 10 cpu=-1 start=16.51 finish=80.08
2901988) VRay 11 cpu=-1 start=16.51 finish=80.08
2901989) VRay 12 cpu=-1 start=16.51 finish=80.08
2901990) VRay 13 cpu=-1 start=16.51 finish=80.08
2902020) VRay 12 cpu=-1 start=18.79 finish=80.07
2902021) VRay 13 cpu=-1 start=18.79 finish=80.07
2902022) VRay 14 cpu=-1 start=18.79 finish=80.07
2902023) VRay 15 cpu=-1 start=18.79 finish=80.07
2901991) VRay 14 cpu=-1 start=16.51 finish=80.08
2901992) RenderProgre 15 cpu=-1 start=16.51 finish=80.08
