Wireguard is a test of network stack and hence not the best for CPU-based metrics. This creates separate network devices and sends traffic through them. I’ve added things to –system to also check for network traffic. However, because these network devices are created after things start, I don’t record the traffic. The profile below shows short bursts of CPU activity amidst bursts of IRQ processing activity and a variable number of processes started.
Note this is the one test where my intel box seems to run faster than AMD box (151 seconds vs 193 seconds)

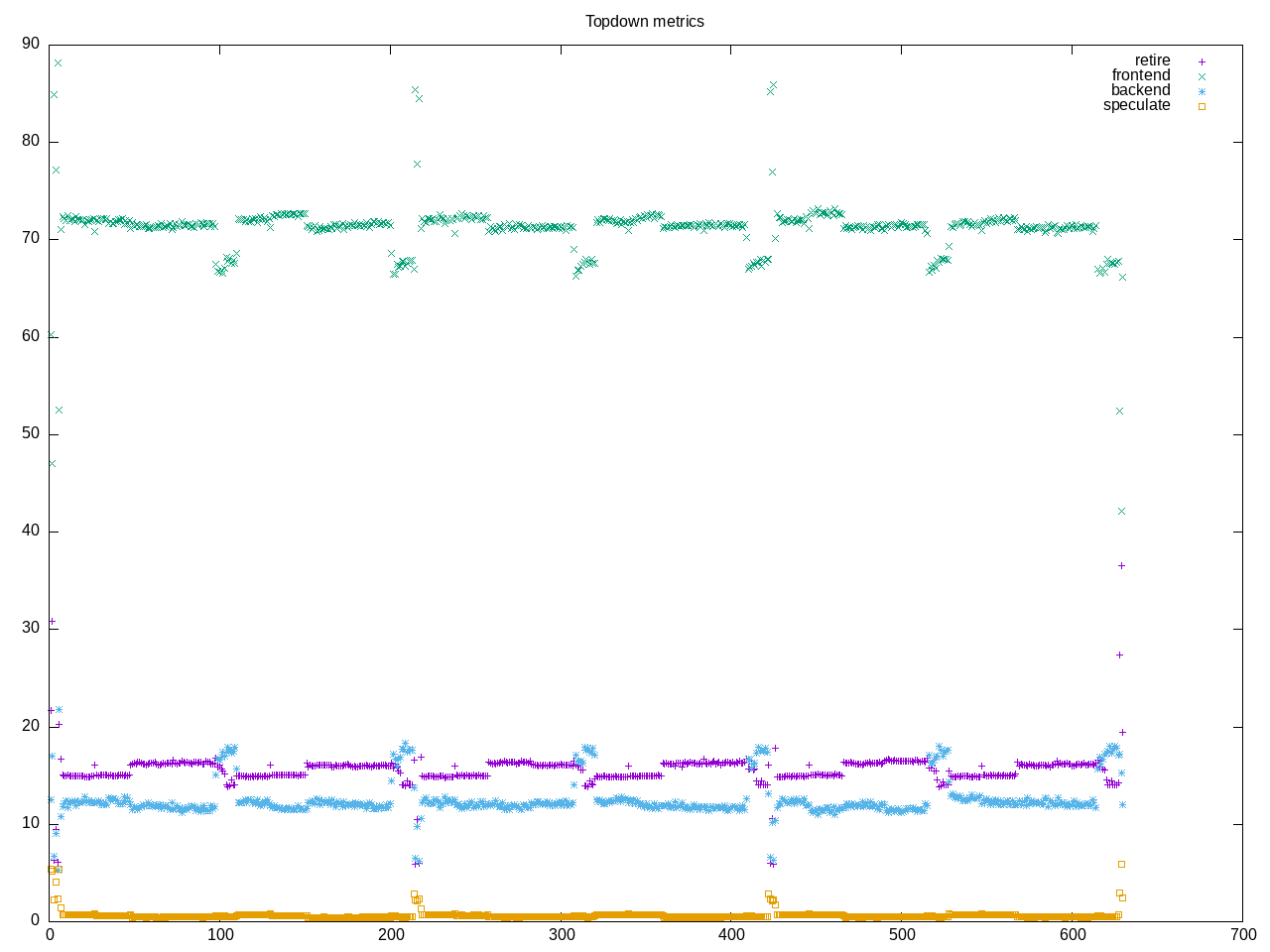

Overall graph of topdown metrics show the short bursts of CPU activity are mostly frontend latency related.
AMD metrics show on average only a little over one core worth of CPU, despite the first graph showing the run queue can be as high as 25 processes. There are a lot of branches in this short amount of code.
elapsed 648.250
on_cpu 0.070 # 1.12 / 16 cores
utime 49.347
stime 675.785
nvcsw 9918151 # 27.06%
nivcsw 26735996 # 72.94%
inblock 0 # 0.00/sec
onblock 13480 # 20.79/sec
cpu-clock 751000202974 # 751.000 seconds
task-clock 759804247090 # 759.804 seconds
page faults 251649 # 331.202/sec
context switches 36657366 # 48245.803/sec
cpu migrations 3114963 # 4099.691/sec
major page faults 146 # 0.192/sec
minor page faults 251503 # 331.010/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 447260141555 # 204.464 branches per 1000 inst
branch misses 50398393703 # 11.27% branch miss
conditional 226128351861 # 103.374 conditional branches per 1000 inst
indirect 5434863427 # 2.485 indirect branches per 1000 inst
cpu-cycles 2937207696633 # 0.29 GHz
instructions 2243131537504 # 0.76 IPC
slots 5718144840738 #
retiring 877099306526 # 15.3% (15.8%)
-- ucode 5812595978 # 0.1%
-- fastpath 871286710548 # 15.2%
frontend 3942628292756 # 68.9% (71.0%)
-- latency 3333746448912 # 58.3%
-- bandwidth 608881843844 # 10.6%
backend 704100712113 # 12.3% (12.7%)
-- cpu 150382607062 # 2.6%
-- memory 553718105051 # 9.7%
speculation 28504097599 # 0.5% ( 0.5%)
-- branch mispredict 28392540859 # 0.5%
-- pipeline restart 111556740 # 0.0%
smt-contention 164806460573 # 2.9% ( 0.0%)
cpu-cycles 2965792327103 # 0.29 GHz
instructions 2257623287988 # 0.76 IPC
instructions 731520942056 # 108.288 l2 access per 1000 inst
l2 hit from l1 68301882340 # 12.49% l2 miss
l2 miss from l1 5649904572 #
l2 hit from l2 pf 6671947470 #
l3 hit from l2 pf 4075915184 #
l3 miss from l2 pf 165354559 #
instructions 734388269635 # 16.385 float per 1000 inst
float 512 263 # 0.000 AVX-512 per 1000 inst
float 256 148351 # 0.000 AVX-256 per 1000 inst
float 128 12032632291 # 16.385 AVX-128 per 1000 inst
float MMX 0 # 0.000 MMX per 1000 inst
float scalar 0 # 0.000 scalar per 1000 inst
Intel metrics
elapsed 475.534
on_cpu 0.065 # 1.05 / 16 cores
utime 37.293
stime 460.655
nvcsw 8453989 # 26.08%
nivcsw 23964755 # 73.92%
inblock 424 # 0.89/sec
onblock 2008 # 4.22/sec
cpu-clock 511848591517 # 511.849 seconds
task-clock 516693238705 # 516.693 seconds
page faults 235690 # 456.151/sec
context switches 32420944 # 62746.987/sec
cpu migrations 6844367 # 13246.481/sec
major page faults 150 # 0.290/sec
minor page faults 235540 # 455.860/sec
alignment faults 0 # 0.000/sec
emulation faults 0 # 0.000/sec
branches 303243666167 # 170.904 branches per 1000 inst
branch misses 969416905 # 0.32% branch miss
conditional 303243689143 # 170.904 conditional branches per 1000 inst
indirect 37894263124 # 21.357 indirect branches per 1000 inst
slots 18241517781626 #
retiring 5729375951369 # 31.4% (31.4%)
-- ucode 1100533124254 # 6.0%
-- fastpath 4628842827115 # 25.4%
frontend 5027917599006 # 27.6% (27.6%)
-- latency 2850238760757 # 15.6%
-- bandwidth 2177678838249 # 11.9%
backend 6724543857759 # 36.9% (36.9%)
-- cpu 4076434284858 # 22.3%
-- memory 2648109572901 # 14.5%
speculation 921400842474 # 5.1% ( 5.1%)
-- branch mispredict 841198396395 # 4.6%
-- pipeline restart 80202446079 # 0.4%
smt-contention 0 # 0.0% ( 0.0%)
cpu-cycles 1756463286214 # 0.20 GHz
instructions 2212636517840 # 1.26 IPC
l2 access 153827325812 # 91.161 l2 access per 1000 inst
l2 miss 32255204923 # 20.97% l2 missProcess summary
693 processes
96 iperf3 50.88 626.23
68 clinfo 18.84 6.66
38 vulkaninfo 0.95 1.31
6 glxinfo:gdrv0 0.19 0.03
4 vulkani:disk$0 0.10 0.14
2 glxinfo 0.10 0.01
2 glxinfo:cs0 0.10 0.01
2 glxinfo:disk$0 0.10 0.01
2 glxinfo:sh0 0.10 0.01
2 glxinfo:shlo0 0.10 0.01
6 php 0.07 0.06
6 clang 0.07 0.05
2 llvmpipe-0 0.05 0.07
2 llvmpipe-1 0.05 0.07
2 llvmpipe-10 0.05 0.07
2 llvmpipe-11 0.05 0.07
2 llvmpipe-12 0.05 0.07
2 llvmpipe-13 0.05 0.07
2 llvmpipe-14 0.05 0.07
2 llvmpipe-15 0.05 0.07
2 llvmpipe-2 0.05 0.07
2 llvmpipe-3 0.05 0.07
2 llvmpipe-4 0.05 0.07
2 llvmpipe-5 0.05 0.07
2 llvmpipe-6 0.05 0.07
2 llvmpipe-7 0.05 0.07
2 llvmpipe-8 0.05 0.07
2 llvmpipe-9 0.05 0.07
24 bash 0.03 0.12
3 rocminfo 0.03 0.00
48 ss 0.00 0.48
1 lspci 0.00 0.03
1 ps 0.00 0.01
100 ip 0.00 0.00
81 sh 0.00 0.00
30 wg 0.00 0.00
24 ping 0.00 0.00
24 ping6 0.00 0.00
12 gcc 0.00 0.00
11 gsettings 0.00 0.00
8 stat 0.00 0.00
8 systemd-detect- 0.00 0.00
6 llvm-link 0.00 0.00
5 phoronix-test-s 0.00 0.00
4 gmain 0.00 0.00
4 readlink 0.00 0.00
3 mount 0.00 0.00
3 wireguard 0.00 0.00
2 lscpu 0.00 0.00
2 uname 0.00 0.00
2 which 0.00 0.00
2 xset 0.00 0.00
1 cc 0.00 0.00
1 date 0.00 0.00
1 dconf worker 0.00 0.00
1 dirname 0.00 0.00
1 dmesg 0.00 0.00
1 dmidecode 0.00 0.00
1 grep 0.00 0.00
1 ifconfig 0.00 0.00
1 lsmod 0.00 0.00
1 mktemp 0.00 0.00
1 qdbus 0.00 0.00
1 realpath 0.00 0.00
1 sed 0.00 0.00
1 sort 0.00 0.00
1 stty 0.00 0.00
1 systemctl 0.00 0.00
1 template.sh 0.00 0.00
1 wc 0.00 0.00
1 xrandr 0.00 0.00
0 processes running
47 maximum processes
The process structure looks as follows:
36321) wireguard cpu=6 start=5.80 finish=204.72
36322) bash cpu=6 start=5.80 finish=204.72
36323) readlink cpu=2 start=5.80 finish=5.80
36324) mount cpu=3 start=5.81 finish=5.81
36325) ip cpu=2 start=5.81 finish=5.81
36326) ip cpu=13 start=5.81 finish=5.82
36327) ip cpu=15 start=5.82 finish=5.82
36328) ip cpu=2 start=5.82 finish=5.82
36329) ip cpu=13 start=5.82 finish=5.83
36330) ip cpu=15 start=5.83 finish=5.83
36331) ip cpu=3 start=5.83 finish=5.83
36332) ip cpu=2 start=5.83 finish=5.83
36334) ip cpu=15 start=5.83 finish=5.89
36335) ip cpu=3 start=5.89 finish=5.90
36337) ip cpu=4 start=5.90 finish=5.96
36338) wg cpu=3 start=5.96 finish=5.96
36339) wg cpu=3 start=5.96 finish=5.96
36340) bash cpu=15 start=5.96 finish=5.96
36341) wg cpu=4 start=5.96 finish=5.96
36342) bash cpu=3 start=5.96 finish=5.97
36343) wg cpu=8 start=5.97 finish=5.97
36344) ip cpu=4 start=5.97 finish=5.97
36345) ip cpu=3 start=5.97 finish=5.97
36346) ip cpu=4 start=5.97 finish=5.98
36347) ip cpu=8 start=5.98 finish=5.98
36348) bash cpu=15 start=5.98 finish=5.98
36349) wg cpu=11 start=5.98 finish=5.98
36350) bash cpu=15 start=5.99 finish=5.99
36351) wg cpu=8 start=5.99 finish=5.99
36352) ip cpu=15 start=5.99 finish=5.99
36353) ip cpu=11 start=5.99 finish=5.99
36354) ip cpu=15 start=6.00 finish=6.00
36355) wg cpu=4 start=6.00 finish=6.00
36356) wg cpu=15 start=6.00 finish=6.00
36357) ping cpu=4 start=6.00 finish=6.01
36358) ping cpu=9 start=6.01 finish=6.02
36359) ping6 cpu=12 start=6.02 finish=6.02
36360) ping6 cpu=11 start=6.02 finish=6.03
36361) iperf3 cpu=1 start=6.03 finish=25.94
36362) ss cpu=4 start=6.03 finish=6.05
36363) iperf3 cpu=2 start=6.05 finish=25.94
36365) iperf3 cpu=15 start=25.95 finish=46.30
36366) ss cpu=12 start=25.95 finish=25.96
36367) iperf3 cpu=12 start=25.96 finish=46.30
36369) iperf3 cpu=5 start=46.30 finish=68.88
36370) ss cpu=12 start=46.30 finish=46.31
36371) iperf3 cpu=4 start=46.31 finish=68.88
36372) iperf3 cpu=2 start=68.89 finish=93.43
36373) ss cpu=10 start=68.89 finish=68.90
36374) iperf3 cpu=0 start=68.90 finish=93.43
36375) ip cpu=11 start=93.43 finish=93.44
36376) ip cpu=10 start=93.44 finish=93.44
36377) ping cpu=7 start=93.44 finish=93.44
36378) ping cpu=9 start=93.44 finish=93.45
36379) ping6 cpu=6 start=93.45 finish=93.45
36380) ping6 cpu=6 start=93.45 finish=93.45
36381) iperf3 cpu=10 start=93.45 finish=96.05
36382) ss cpu=11 start=93.45 finish=93.47
36383) iperf3 cpu=8 start=93.47 finish=96.05
36386) iperf3 cpu=7 start=96.05 finish=98.67
36387) ss cpu=15 start=96.05 finish=96.07
36388) iperf3 cpu=8 start=96.07 finish=98.67
36389) iperf3 cpu=9 start=98.67 finish=102.12
36390) ss cpu=7 start=98.67 finish=98.69
36391) iperf3 cpu=4 start=98.69 finish=102.12
36392) iperf3 cpu=15 start=102.12 finish=105.81
36393) ss cpu=3 start=102.12 finish=102.14
36394) iperf3 cpu=12 start=102.14 finish=105.81
36395) ip cpu=3 start=105.81 finish=105.81
36396) ip cpu=3 start=105.82 finish=105.82
36397) wg cpu=3 start=105.82 finish=105.82
36398) wg cpu=3 start=105.82 finish=105.82
36399) ping cpu=3 start=105.82 finish=105.83
36400) ping cpu=12 start=105.83 finish=105.83
36401) ping6 cpu=6 start=105.83 finish=105.83
36402) ping6 cpu=12 start=105.83 finish=105.84
36403) iperf3 cpu=15 start=105.84 finish=125.84
36404) ss cpu=10 start=105.84 finish=105.85
36405) iperf3 cpu=14 start=105.86 finish=125.84
36406) iperf3 cpu=5 start=125.84 finish=146.22
36407) ss cpu=2 start=125.84 finish=125.86
36408) iperf3 cpu=0 start=125.86 finish=146.22
36410) iperf3 cpu=4 start=146.22 finish=168.64
36411) ss cpu=1 start=146.23 finish=146.24
36412) iperf3 cpu=11 start=146.24 finish=168.64
36413) iperf3 cpu=8 start=168.64 finish=192.19
36414) ss cpu=2 start=168.64 finish=168.66
36415) iperf3 cpu=2 start=168.66 finish=192.19
36416) ip cpu=1 start=192.19 finish=192.19
36417) ip cpu=1 start=192.19 finish=192.19
36418) ping cpu=1 start=192.19 finish=192.20
36419) ping cpu=7 start=192.20 finish=192.20
36420) ping6 cpu=1 start=192.20 finish=192.20
36421) ping6 cpu=6 start=192.21 finish=192.21
36422) iperf3 cpu=4 start=192.21 finish=194.74
36423) ss cpu=1 start=192.21 finish=192.22
36424) iperf3 cpu=2 start=192.22 finish=194.74
36425) iperf3 cpu=3 start=194.74 finish=197.24
36426) ss cpu=7 start=194.74 finish=194.75
36427) iperf3 cpu=12 start=194.75 finish=197.24
36428) iperf3 cpu=6 start=197.24 finish=200.68
36429) ss cpu=10 start=197.24 finish=197.25
36430) iperf3 cpu=11 start=197.25 finish=200.68
36431) iperf3 cpu=3 start=200.69 finish=204.30
36432) ss cpu=8 start=200.69 finish=200.70
36433) iperf3 cpu=12 start=200.70 finish=204.30
36434) ip cpu=9 start=204.30 finish=204.30
36435) ip cpu=6 start=204.30 finish=204.47
36436) ip cpu=2 start=204.47 finish=204.70
36437) bash cpu=7 start=204.70 finish=204.70
36438) ip cpu=1 start=204.70 finish=204.70
36439) bash cpu=3 start=204.70 finish=204.71
36440) ip cpu=12 start=204.70 finish=204.70
36441) bash cpu=13 start=204.71 finish=204.71
36442) ip cpu=7 start=204.71 finish=204.71
36443) ip cpu=1 start=204.71 finish=204.71
36444) ip cpu=12 start=204.71 finish=204.71
36445) ip cpu=1 start=204.71 finish=204.72
